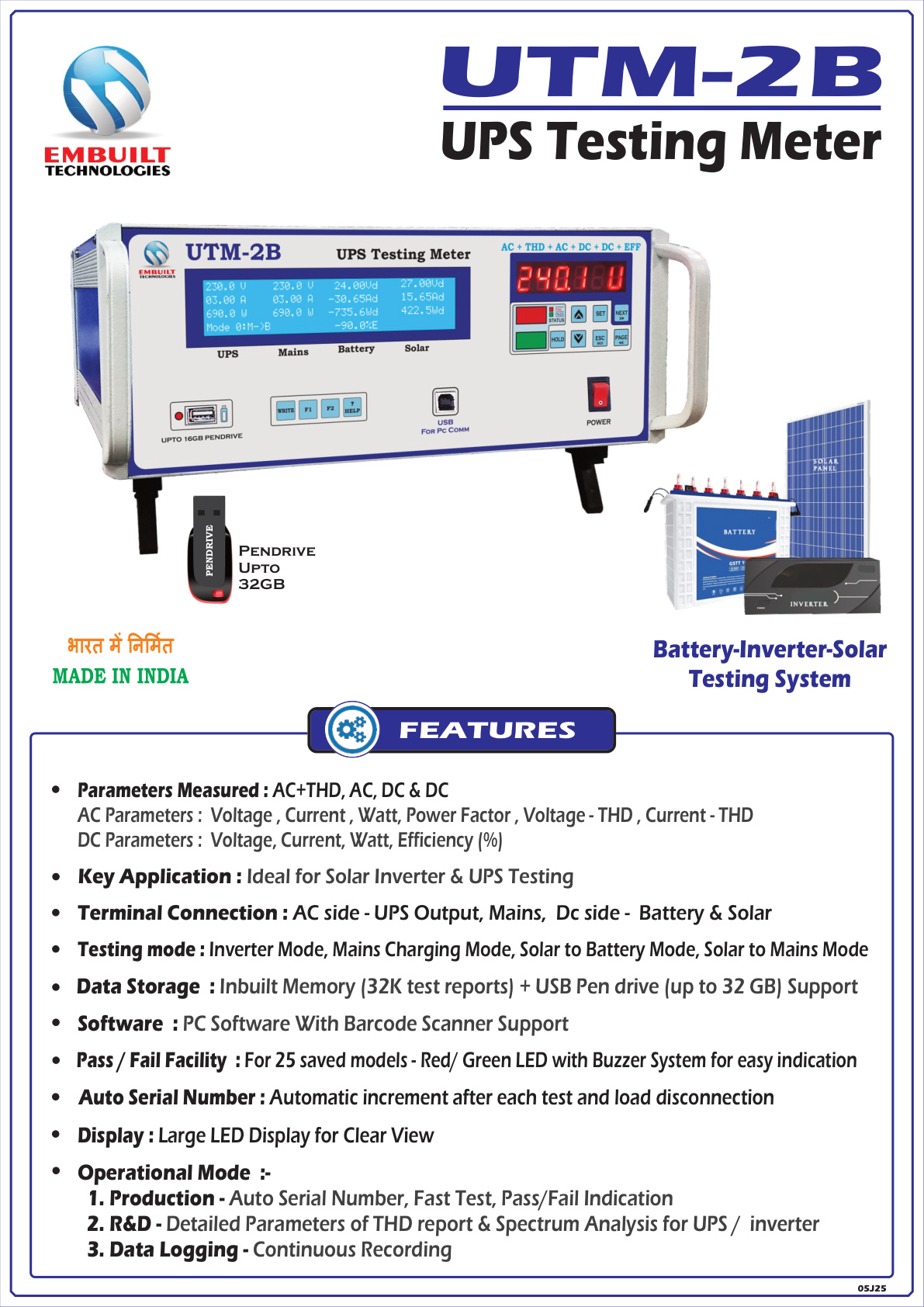

UTM-2B

Key Features & Introduction

• Parameters Measured : AC+THD, AC, DC & DC
• AC Parameters : Voltage , Current , Watt, Power Factor , Voltage - THD , Current - THD
• DC Parameters : Voltage, Current, Watt, Efficiency (%)
• Data Storage : Inbuilt Memory (32K test reports) + USB Pen drive (up to 32 GB) Support
• Software : PC Software With Barcode Scanner Support
• Pass / Fail Facility : For 25 saved models - Red/ Green LED with Buzzer System for easy indication
• Auto Serial Number : Automatic increment after each test and load disconnection
• Operational Mode :-
• 1. Production - Auto Serial Number, Fast Test, Pass/Fail Indication
• 2. R&D -
• Detailed Parameters of THD report & Spectrum Analysis for UPS / inverter
• 3. Data Logging -
• Continuous Recording
• Key Application : Ideal for Solar Inverter & UPS Testing
• Terminal Connection : AC side - UPS Output, Mains, Dc side - Battery & Solar
• Testing mode : Inverter Mode, Mains Charging Mode, Solar to Battery Mode, Solar to Mains Mode
• Display : Large LED Display for Clear View
• Battery-Inverter-Solar
• Testing System
• 05J25
• LOG DATA ON PENDRIVE
• PDF REPORT GENERATION
• SOFTWARE
• Spectrum Of Current Harmonics
• Spectrum Of Voltage Harmonics
• Features:
• Report Generation
• Data Logger
• Online Graphing
• Real Time View
• Report Genrated by UTM-2B Software © Embuilt Technologies
• www.embuilt.com
• Report Genrated by UTM-2B Software © Embuilt Technologies
• www.embuilt.com
• Developed & Manufactured By :
• EMBUILT TECHNOLOGIES
• A-404,1st Floor, Near Nursery Circle,
• Vaishali Nagar,, Jaipur-302021, (Raj.)
• Mob.: +91 7524853539
• E-mail
• Website : www.embuilt.com
• www.leddrivertesting.com
• info@embuilt.com
• MANUAL
• Power cable
• Manual
• Patch Cords
• Software CD
• USB cable
• Pendrive
