Hot
Other Instruments
SPPT-2 Catalog
IN STOCK
(4.8 Reviews)
SPPT-2 Catalog - High quality industrial instrument from Embuilt Technologies.
Download Brochure
Datasheet & User guide
1 Year Warranty Against Manufacturing Defects
Standard coverageShips within Two days of Confirmed Order
Global delivery09:00 AM - 05:30 PM (Mon-Sat)
Expert assistanceProduct Overview

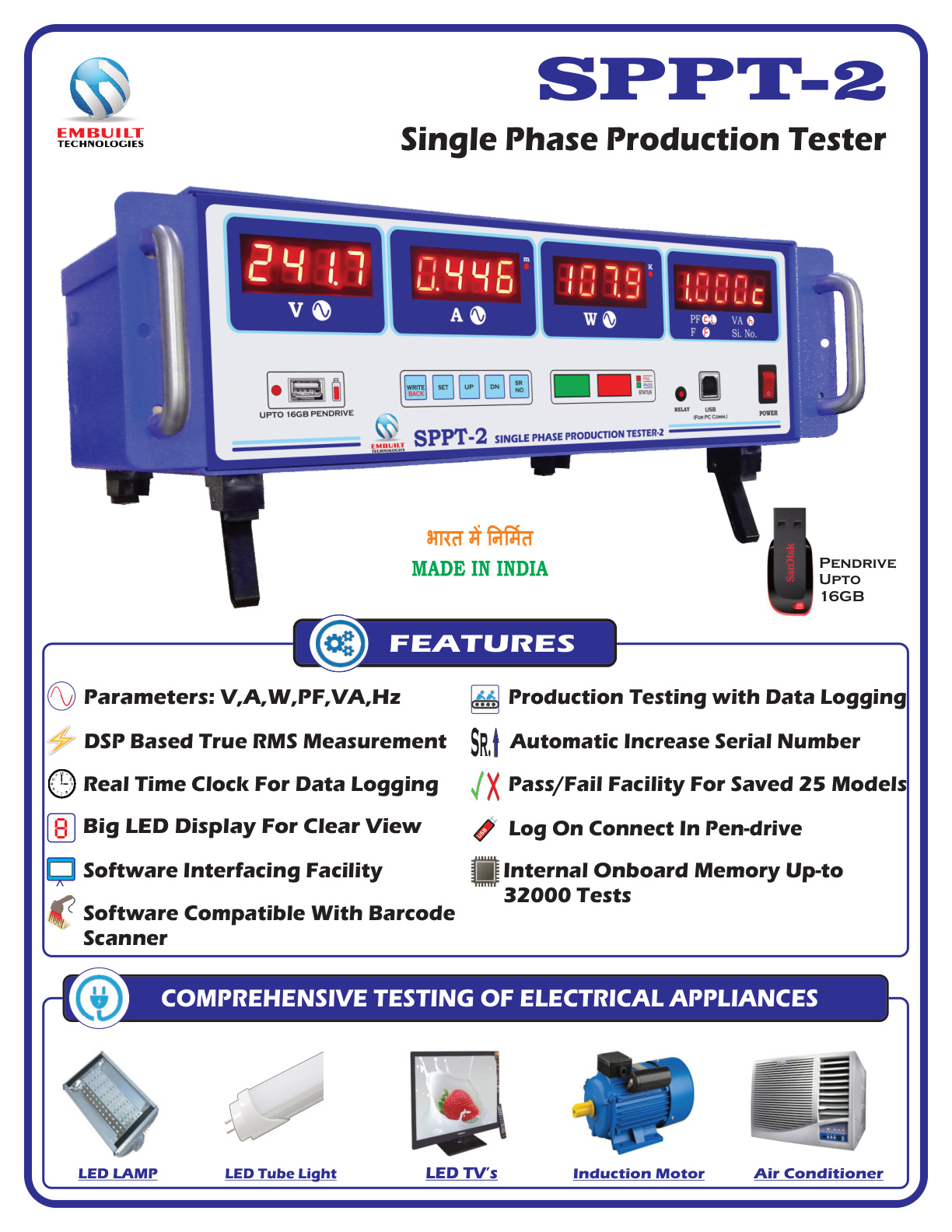

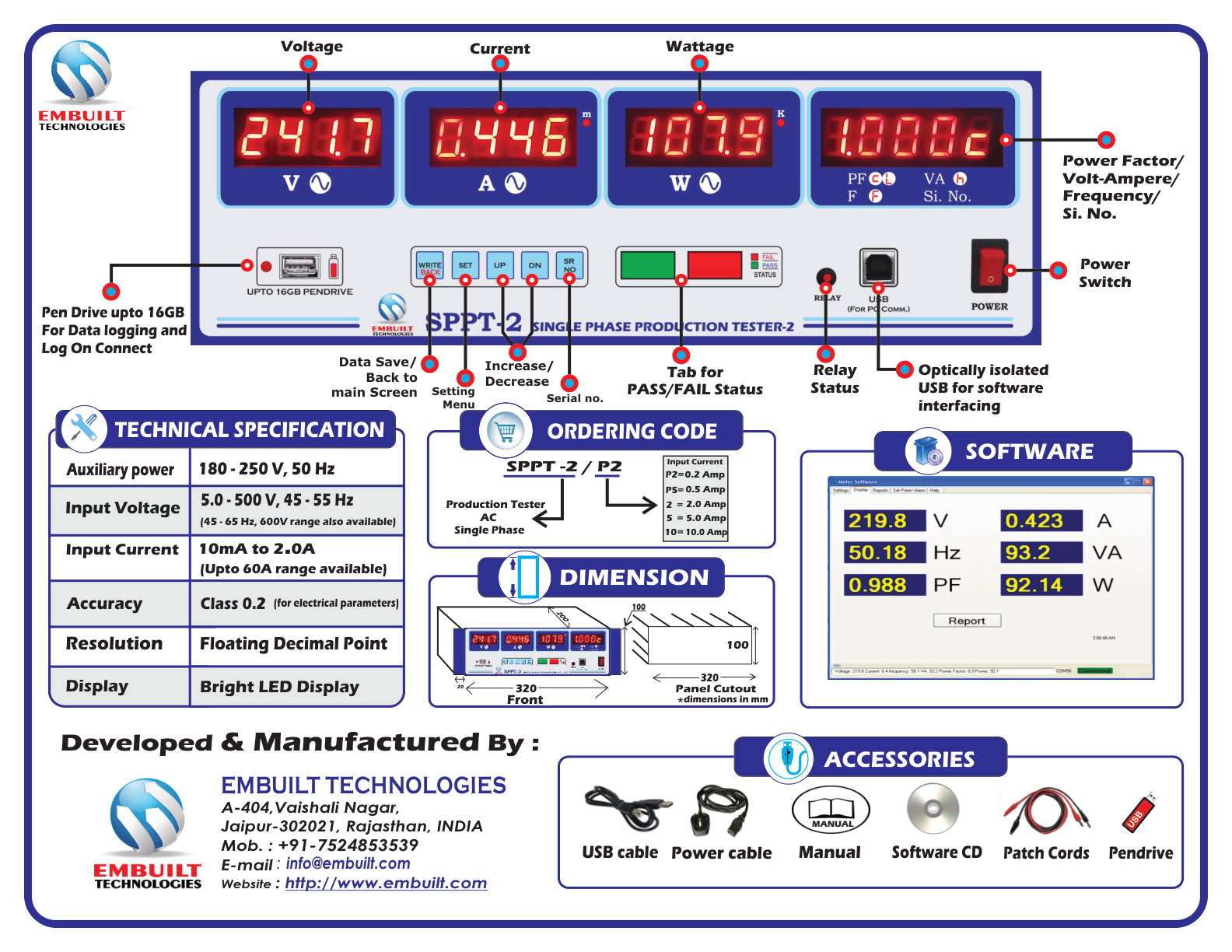

Official Catalog
Download PDF
Key Features & Introduction
- Single Phase Production Tester
- SPPT-2
- COMPREHENSIVE TESTING OF ELECTRICAL APPLIANCES
- Parameters: V,A,W,PF,VA,Hz
- DSP Based True RMS Measurement
- Automatic Increase Serial Number
- Real Time Clock For Data Logging
- Pass/Fail Facility For Saved 25 Models
- Production Testing with Data Logging
- Big LED Display For Clear View
- Software Interfacing Facility
- Software Compatible With Barcode
- Scanner
- Log On Connect In Pen-drive
- Internal Onboard Memory Up-to
- 32000 Tests
- Developed & Manufactured By :
- EMBUILT TECHNOLOGIES
- A-404,Vaishali Nagar,
- Jaipur-302021, Rajasthan, INDIA
- Mob. : +91-7524853539
- Website : http://www.embuilt.com
- : info@embuilt.com
- Pen Drive upto 16GB
- For Data logging and
- Log On Connect
- Optically isolated
- USB for software
- interfacing
- Tab for
- PASS/FAIL Status
- Power Factor/
- Volt-Ampere/
- Frequency/
- Si. No.
- MANUAL
- Power cable
- Manual
- Patch Cords
- Software CD
- USB cable
Technical Specifications
Technical Specifications
- Input Current
- (Upto 60A range available)
- Resolution
- Floating Decimal Point
- 5.0 - 500 V, 45 - 55 Hz
- Input Voltage
- Accuracy
- Class 0.2
- (45 - 65 Hz, 600V range also available)
- (for electrical parameters)
- Display
- Bright LED Display
- ORDERING CODE
- SPPT -2 / P2
- Production Tester
- Single Phase
- 2 =
- 5 =
- 0.2 Amp
- 0.5 Amp
- 2.0 Amp
- 5.0 Amp
- 10.0 Amp
- Input Current
- SOFTWARE
- Power
- Switch
- Relay
- Status
- Voltage
- Current
- Wattage
- Increase/
- Decrease
- Setting
- Menu
- Data Save/
- Back to
- main Screen
- Serial no.
