Transformer Testing
Single Phase TRI-1 Catalog
IN STOCK
(4.8 Reviews)
Single Phase Transformer turns
ratio instrument-1
for fast and acqurate testing.
Testing up to 10MVA transformer.
Download Brochure
Datasheet & User guide
1 Year Warranty Against Manufacturing Defects
Standard coverageShips within Two days of Confirmed Order
Global delivery09:00 AM - 05:30 PM (Mon-Sat)
Expert assistanceProduct Overview

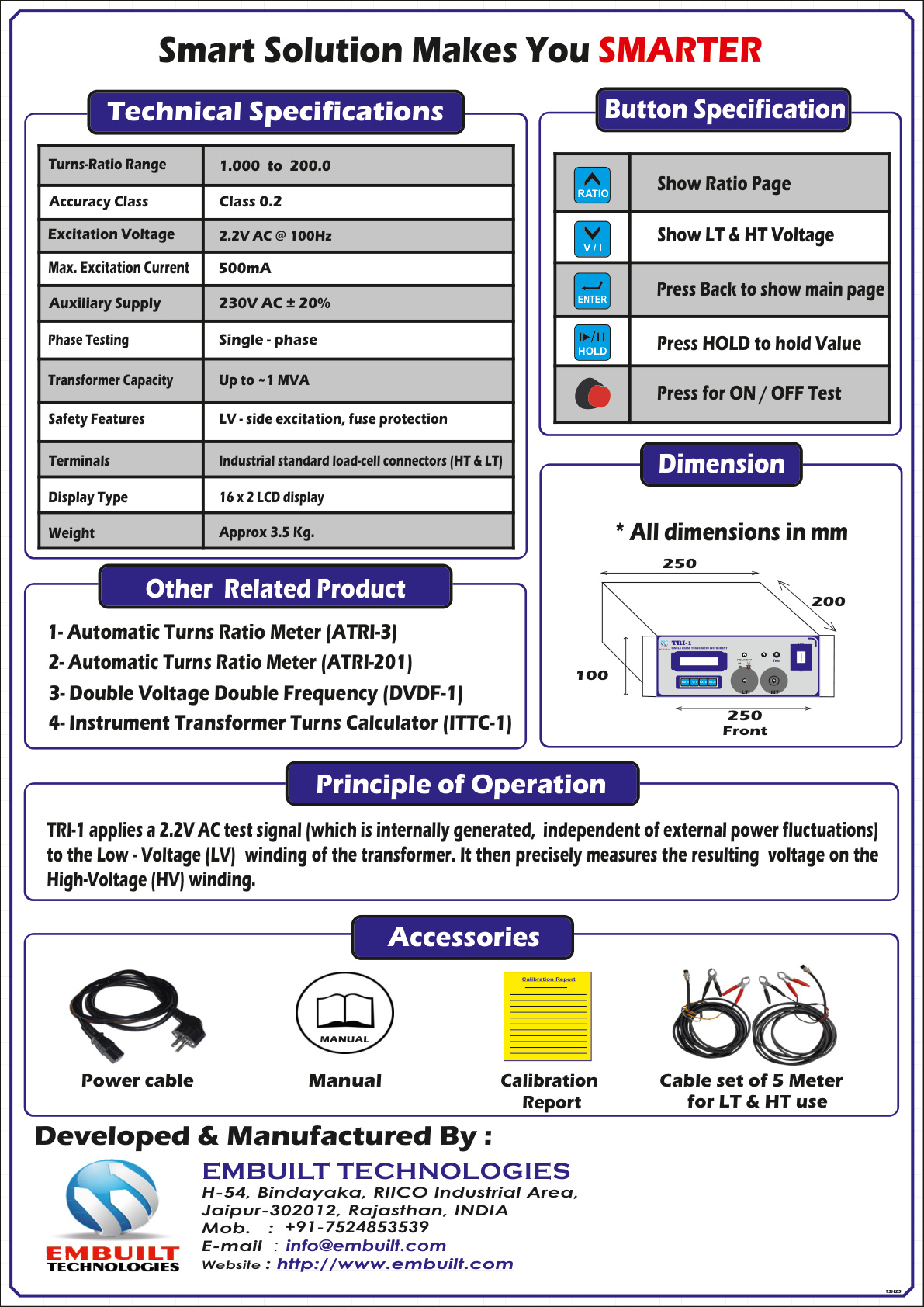

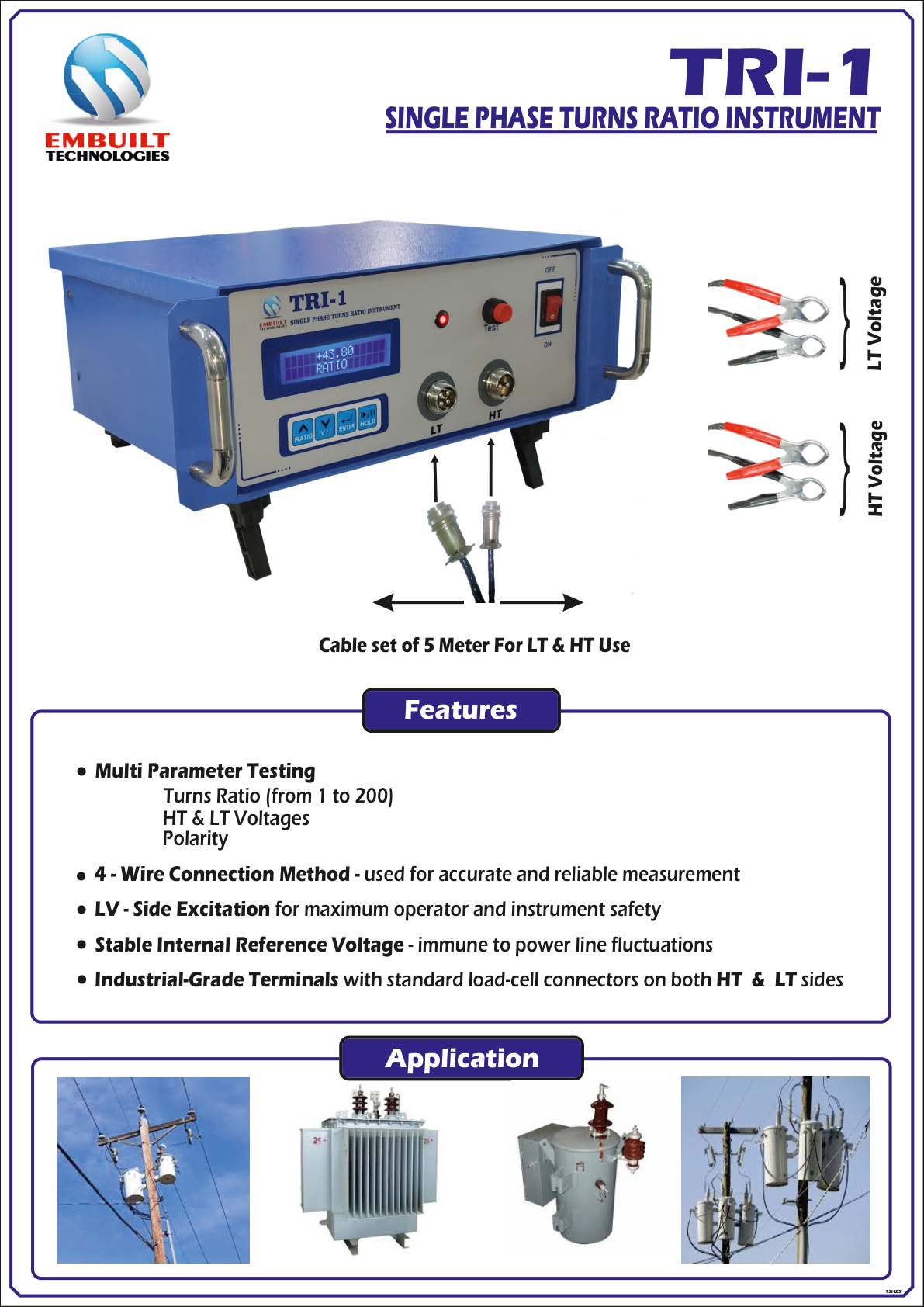

Official Catalog
Download PDF
Key Features & Introduction
- Measurement of Turns Ratio HT and LT voltages Polarity
- Fuse protection - Fuse is provided to take care in case of shorting winding.
- Test switch is provide to test turns ratio of single phase transformer.
- Accuracy - DSP based measurement with high resolution 24 bit ADC ensures class 0.2 accuracy.
- Cable set of 5 Meter For LT & HT Use
- Test voltage of approx. 2.2 Volts is provided to LT through ON/OFF switch. Thus ensuring safety of personnel and instrument.
Technical Specifications
Technical Specifications
- Parameters- Turns Ratio, HT, LT Voltage and Polarity
- Auxiliary Supply- 230V ± 20%
- Display- 16x2 LCD Monochrome Display
- Excitation Voltage- 2.2 V AC, 100Hz.
- Range (Ratio)- 2.00 to 200.0
- Accuracy- Class 0.2
- Weight- Approx. 2 Kg.
- Dimension- 250(W)X200(D)X100(H)
