LED Driver Testing and Analysis
DPA-1i
IN STOCK
(4.8 Reviews)
Single Phase Power Analyser with pass fail Limits and Software.
Download Brochure
Datasheet & User guide
1 Year Warranty Against Manufacturing Defects
Standard coverageShips within Two days of Confirmed Order
Global delivery09:00 AM - 05:30 PM (Mon-Sat)
Expert assistanceProduct Overview

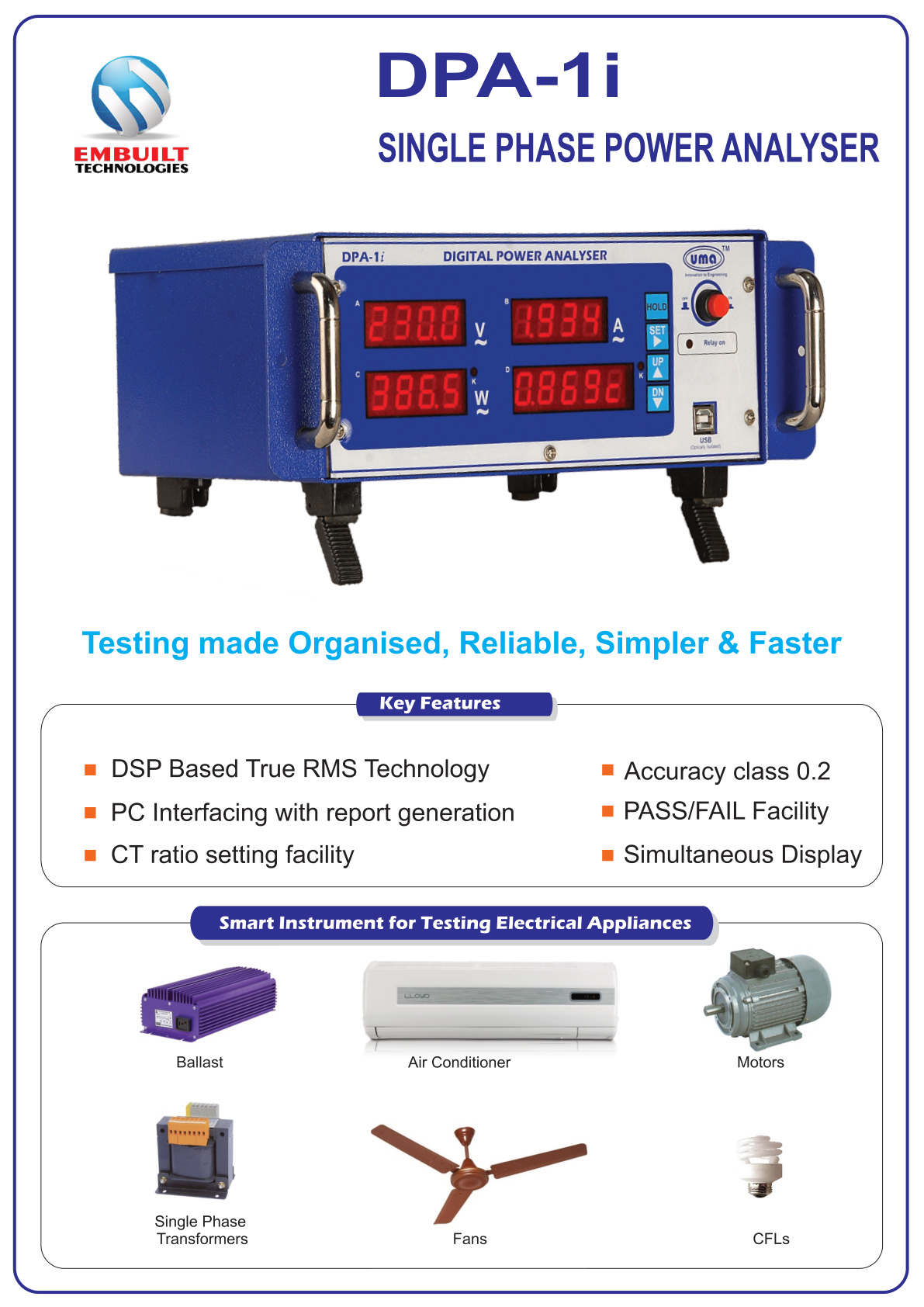

Official Catalog
Download PDF
Key Features & Introduction
- Voltage Current Power Factor Wattage Frequency Apparent Power
- Pass / Fail Facility.
- PC Interfacing With Report Generation.
- DSP Based True RMS Technology
Technical Specifications
Technical Specifications
- Parameters - Voltage, Current, Power Factor, Wattage, Frequency, Apparent Power
- Voltage range- 20 - 500 V AC ( Measurement voltage range is costomisable)
- Input range- 10mA - 2A AC ( Measurement current range is costomisable)
- Accuracy Class 0.2
- Aux supply- 230V ±20%
- Wieght- Approx ( 3kg )Wieght- Approx ( 3kg )

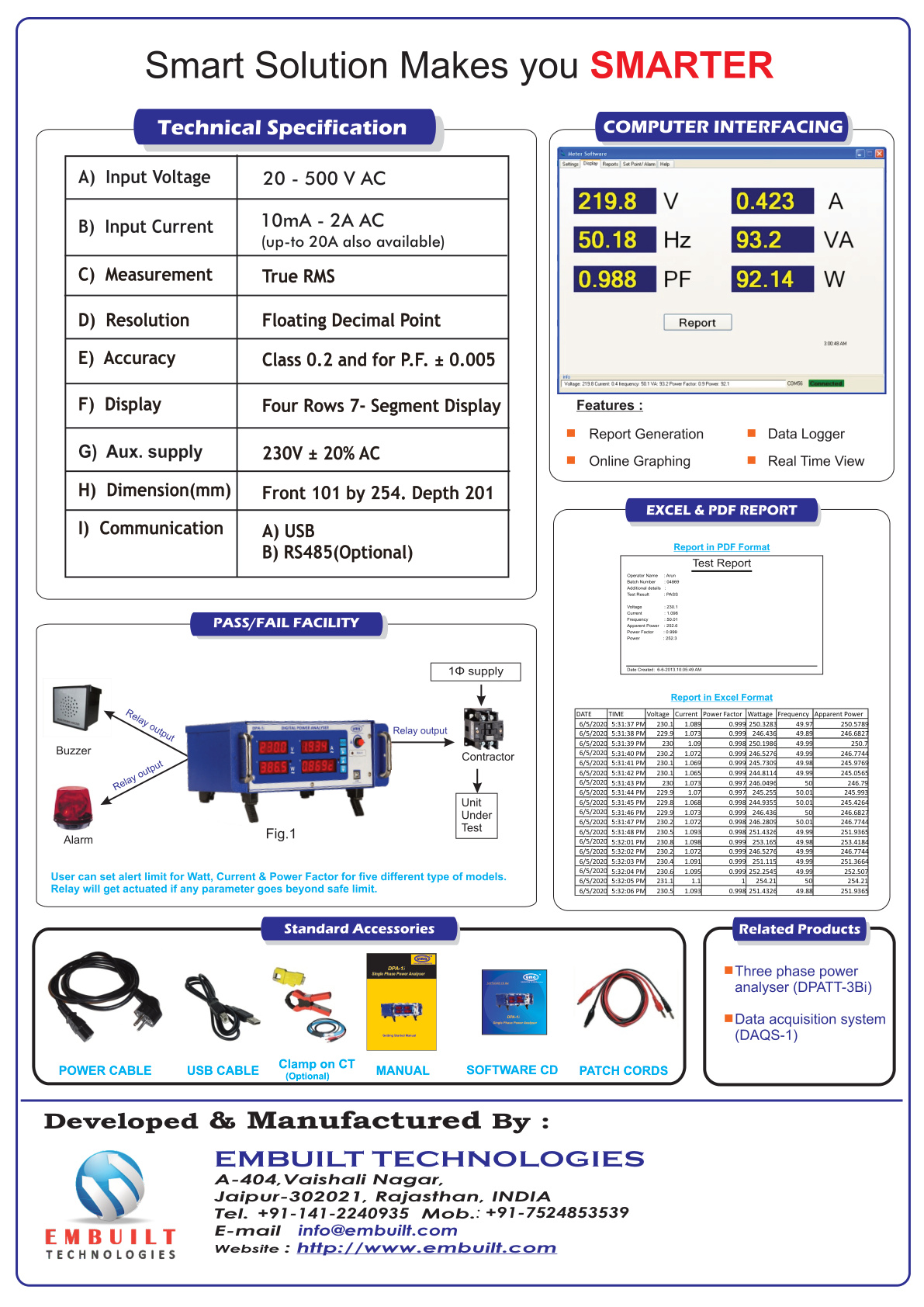

Please refer to the catalog image above for detailed technical specifications.
