CTSK-2 catalog
Hot
Other Instruments

CTSK-2 catalog

IN STOCK
(4.8 Reviews)

CTSK-2 catalog - High quality industrial instrument from Embuilt Technologies.

Ask Experts
Download Brochure

Technical datasheet & User guide

1 Year Warranty Against Manufacturing Defects
Standard coverage
Ships within Two days of Confirmed Order
Global delivery
09:00 AM - 05:00 PM (Mon-Sat)
Expert assistance

Product Overview

Official Catalog

Download PDF

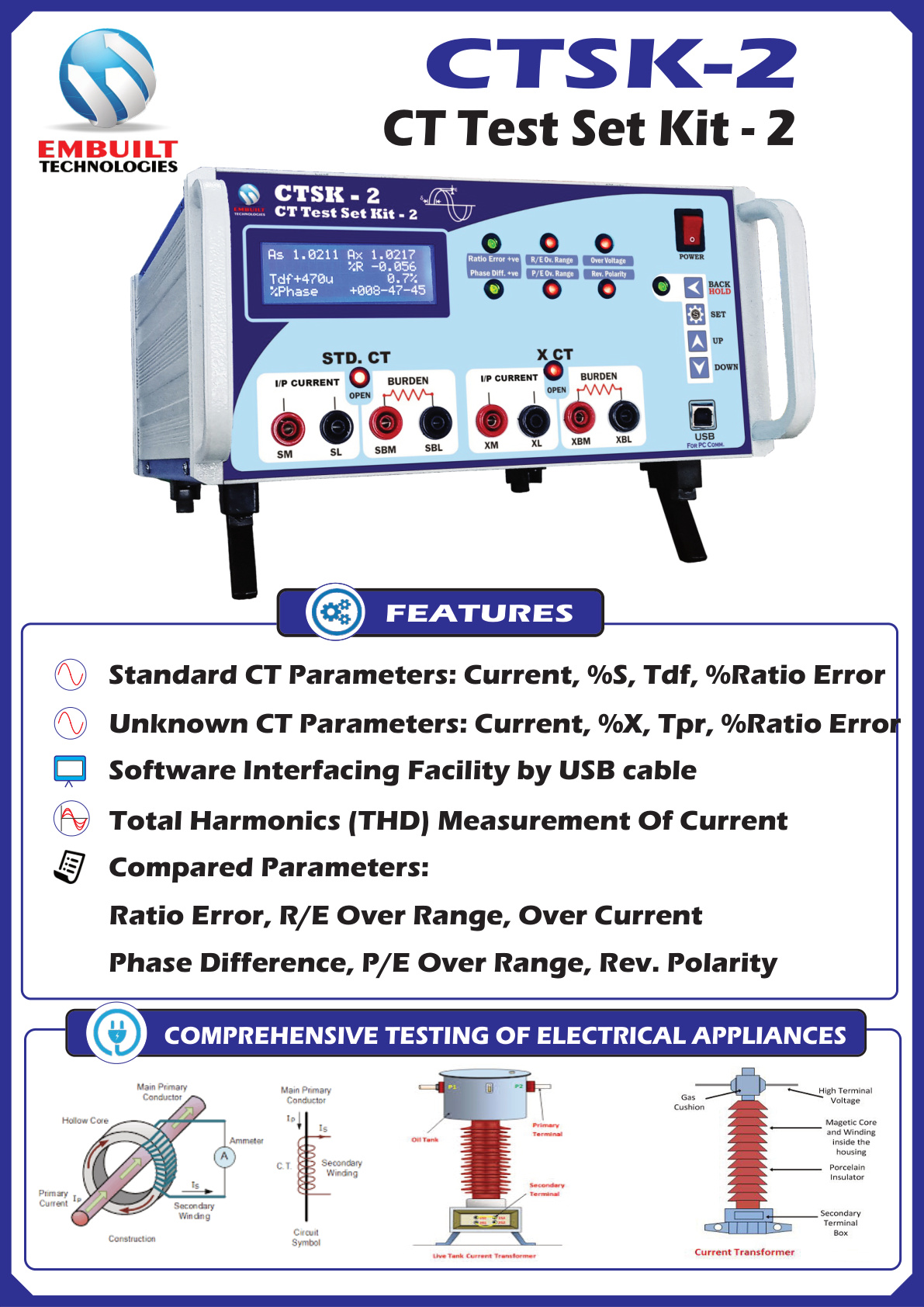

CTSK-2 catalog.pdf Page 1

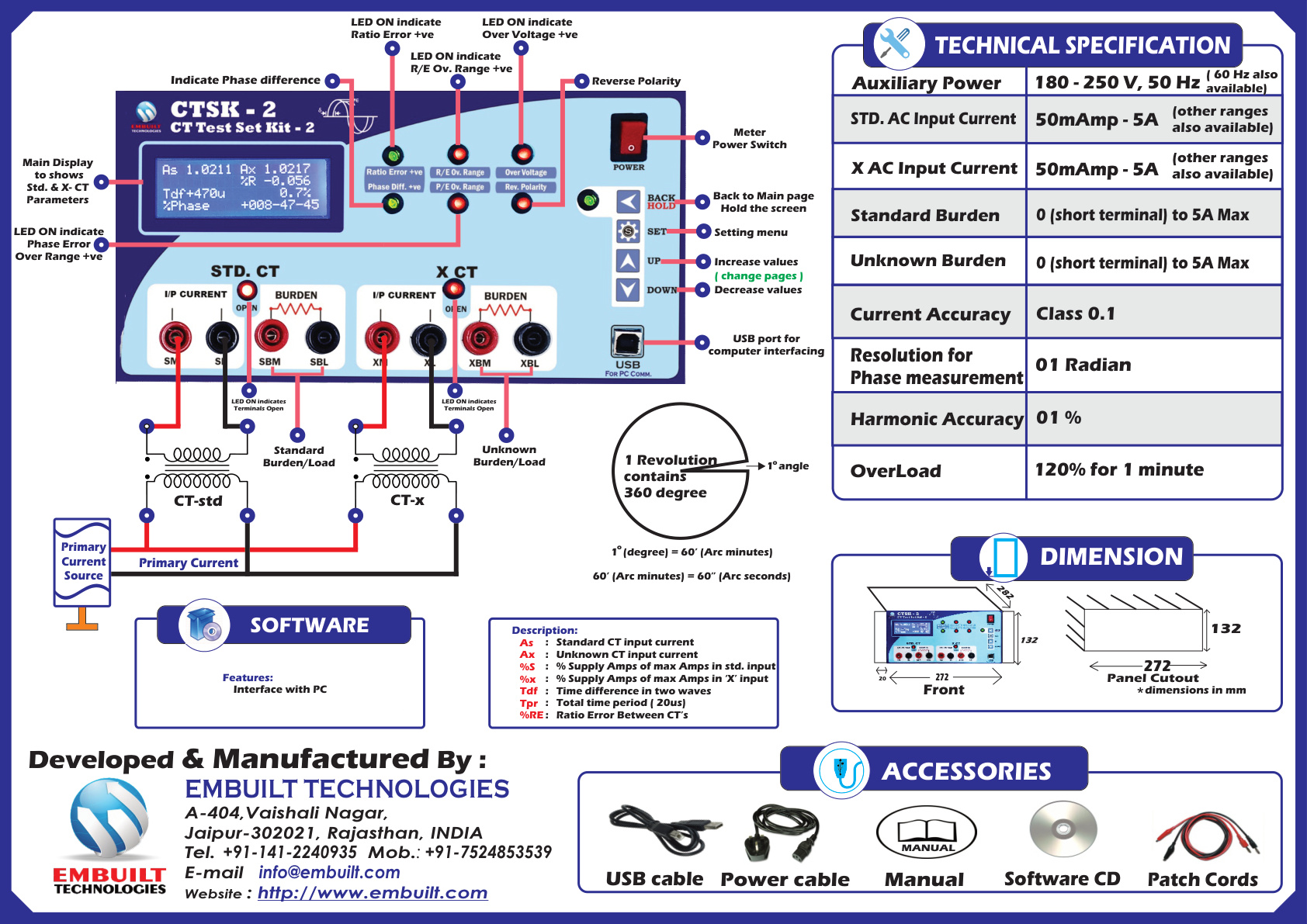

CTSK-2 catalog.pdf Page 2
Key Features & Introduction
  • CT Test Set Kit - 2
  • CTSK-2
  • COMPREHENSIVE TESTING OF ELECTRICAL APPLIANCES
  • Standard CT Parameters: Current, %S, Tdf, %Ratio Error
  • Unknown CT Parameters: Current, %X, Tpr, %Ratio Error
  • Compared Parameters:
  • Ratio Error, R/E Over Range, Over Current
  • Phase Difference, P/E Over Range, Rev. Polarity
  • Software Interfacing Facility by USB cable
  • Total Harmonics (THD) Measurement Of Current
  • Developed & Manufactured By :
  • EMBUILT TECHNOLOGIES
  • A-404,Vaishali Nagar,
  • Jaipur-302021, Rajasthan, INDIA
  • Tel. Mob.
  • E-mail
  • Website : http://www.embuilt.com
  • +91-7524853539
  • +91-141-2240935
  • info@embuilt.com
  • MANUAL
  • Power cable
  • Manual
  • Patch Cords
  • Software CD
  • USB cable

Technical Specifications

Technical Specifications
  • X AC Input Current
  • Resolution for
  • Phase measurement 01 Radian
  • 50mAmp - 5A
  • STD. AC Input Current
  • Current Accuracy
  • Class 0.1
  • 50mAmp - 5A
  • Unknown Burden
  • Primary Current
  • CT-std
  • CT-x
  • LED ON indicate
  • Over Voltage +ve
  • LED ON indicate
  • R/E Ov. Range +ve
  • Reverse Polarity
  • Meter
  • Power Switch
  • Back to Main page
  • Hold the screen
  • Setting menu
  • Increase values
  • Decrease values
  • USB port for
  • computer interfacing
  • Main Display
  • to shows
  • Std. & X- CT
  • Parameters
  • LED ON indicate
  • Phase Error
  • Over Range +ve
  • Unknown
  • Burden/Load
  • Standard
  • Burden/Load
  • Features:
  • Interface with PC
  • SOFTWARE
  • Standard Burden
  • 0 (short terminal) to 5A Max
  • 0 (short terminal) to 5A Max
  • 1 Revolution
  • contains
  • 360 degree
  • 1 angle
  • 1 (degree) = 60’ (Arc minutes)
  • 60’ (Arc minutes) = 60” (Arc seconds)
  • LED ON indicates
  • Terminals Open
  • LED ON indicates
  • Terminals Open
  • (other ranges
  • also available)
  • (other ranges
  • also available)
  • Primary
  • Current
  • Source
  • ( 60 Hz also
  • available)
  • Harmonic Accuracy 01 %
  • OverLoad
  • 120% for 1 minute
  • ( change pages )
  • Description:
  • : Standard CT input current
  • : Unknown CT input current
  • : % Supply Amps of max Amps in std. input
  • : % Supply Amps of max Amps in ‘X’ input
  • : Time difference in two waves
  • : Total time period ( 20us)
  • : Ratio Error Between CT’s
