THDPM-1
Hot
Other Instruments

THDPM-1

IN STOCK
(4.8 Reviews)

THDPM-1 - High quality industrial instrument from Embuilt Technologies.

Ask Experts
Download Brochure

Technical datasheet & User guide

1 Year Warranty Against Manufacturing Defects
Standard coverage
Ships within Two days of Confirmed Order
Global delivery
09:00 AM - 05:00 PM (Mon-Sat)
Expert assistance

Product Overview

Official Catalog

Download PDF

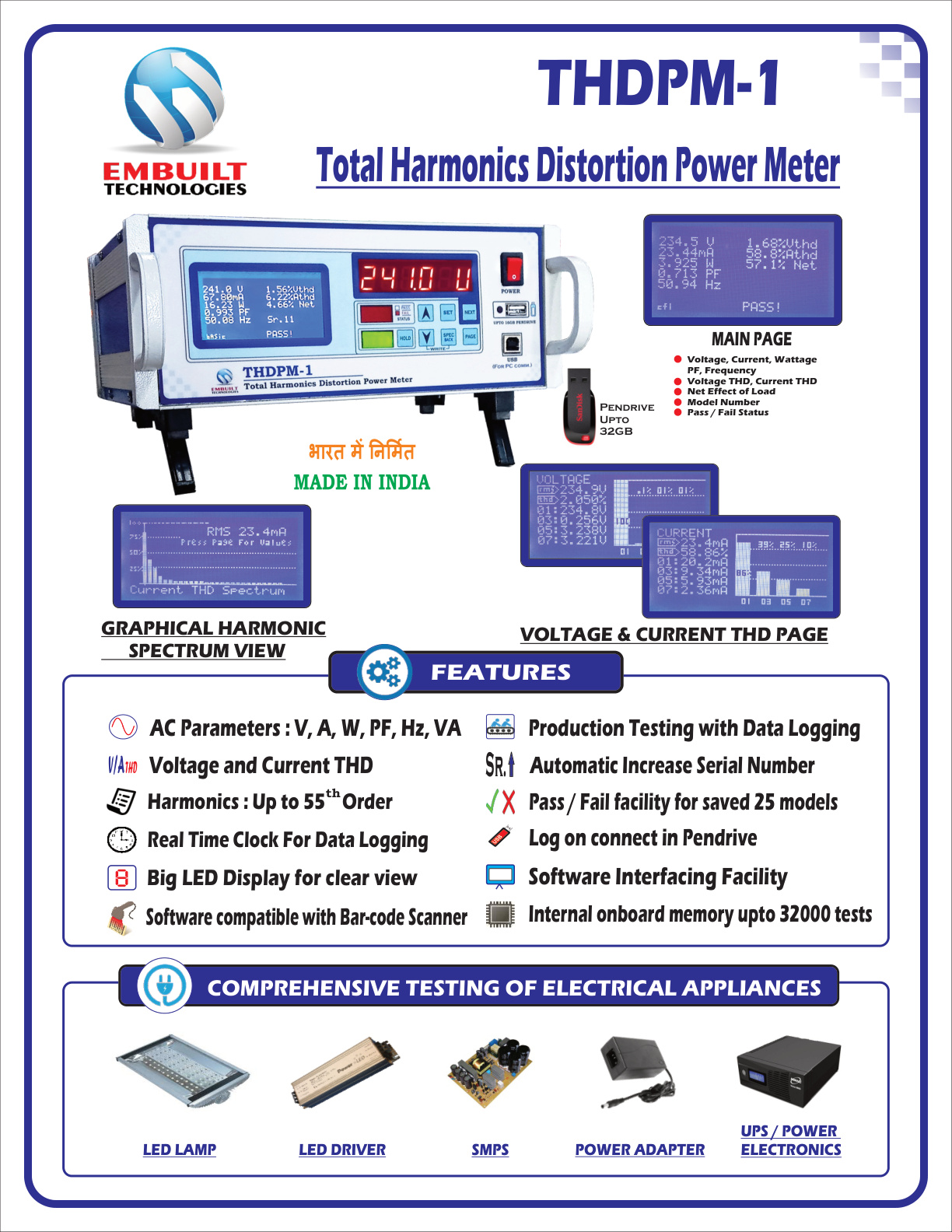

THDPM-1_catalog.pdf Page 1

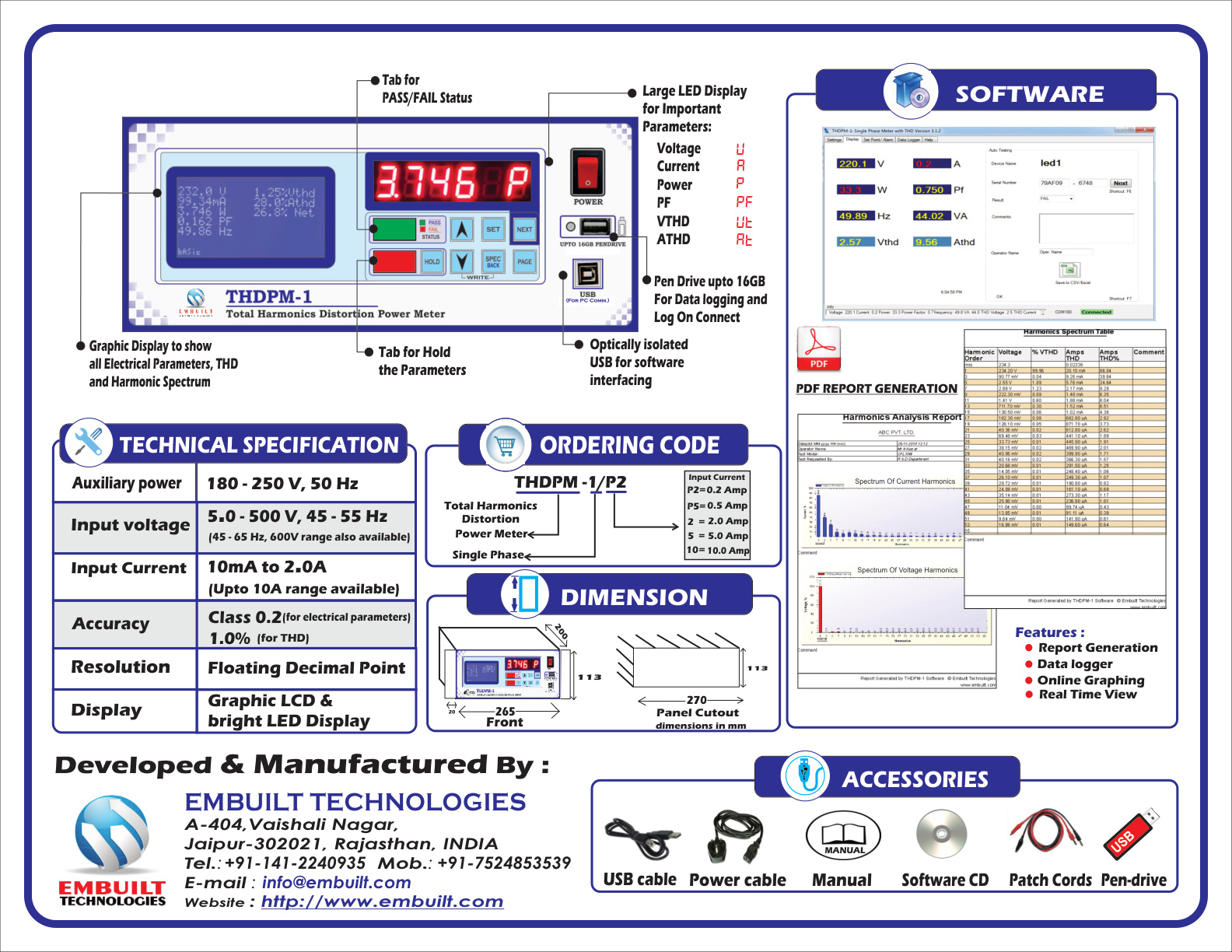

THDPM-1_catalog.pdf Page 2
Key Features & Introduction
  • V/A THD
  • Pass / Fail facility for saved 25 models
  • Real Time Clock For Data Logging
  • AC Parameters : V, A, W, PF, Hz, VA
  • Production Testing with Data Logging
  • Log on connect in Pendrive
  • Automatic Increase Serial Number
  • Big LED Display for clear view
  • Internal onboard memory upto 32000 tests
  • Software Interfacing Facility
  • Software compatible with Bar-code Scanner
  • Voltage and Current THD
  • Harmonics : Up to 55 Order
  • POWER ADAPTER
  • UPS / POWER
  • ELECTRONICS
  • SMPS
  • LED DRIVER
  • LED LAMP
  • COMPREHENSIVE TESTING OF ELECTRICAL APPLIANCES
  • THDPM-1
  • Total Harmonics Distortion Power Meter
  • VOLTAGE & CURRENT THD PAGE
  • GRAPHICAL HARMONIC
  • SPECTRUM VIEW
  • MAIN PAGE
  • Voltage, Current, Wattage
  • PF, Frequency
  • Voltage THD, Current THD
  • Net Effect of Load
  • Model Number
  • Pass / Fail Status
  • Pendrive
  • Upto
  • 32GB
  • MANUAL
  • Power cable
  • Manual
  • Patch Cords
  • Software CD
  • USB cable
  • Developed & Manufactured By :
  • EMBUILT TECHNOLOGIES
  • A-404,Vaishali Nagar,
  • Jaipur-302021, Rajasthan, INDIA
  • Tel. Mob.
  • E-mail
  • Website : http://www.embuilt.com
  • +91-7524853539
  • +91-141-2240935
  • SOFTWARE
  • : info@embuilt.com
  • Report Generation
  • Data logger
  • Online Graphing
  • Real Time View
  • Features :
  • PDF REPORT GENERATION
  • Spectrum Of Current Harmonics
  • Spectrum Of Voltage Harmonics

Technical Specifications

Technical Specifications
  • (Upto 10A range available)
  • Floating Decimal Point
  • 5.0 - 500 V, 45 - 55 Hz
  • Input voltage
  • Class 0.2
  • (45 - 65 Hz, 600V range also available)
  • (for electrical parameters)
  • 1.0% (for THD)
  • Graphic LCD &
  • bright LED Display
  • ORDERING CODE
  • THDPM -1/P2
  • Total Harmonics
  • Distortion
  • Power Meter
  • Single Phase
  • Optically isolated
  • USB for software
  • interfacing
  • Large LED Display
  • for Important
  • Parameters:
  • Voltage
  • Current
  • Power
  • VTHD
  • ATHD
  • Tab for
  • PASS/FAIL Status
  • Graphic Display to show
  • all Electrical Parameters, THD
  • and Harmonic Spectrum
  • Tab for Hold
  • the Parameters
  • Pen Drive upto 16GB
  • For Data logging and
  • Log On Connect
  • (For PC Comm.)
  • 2 =
  • 5 =
  • 0.2 Amp
  • 0.5 Amp
  • 2.0 Amp
  • 5.0 Amp
  • 10.0 Amp
  • Input Current
  • Input Current
  • Auxiliary power
  • Resolution
  • Accuracy
  • Display
  • Pen-drive
