TH-Log6 Cat - High quality industrial instrument from Embuilt Technologies.
Download Brochure
Datasheet & User guide
1 Year Warranty Against Manufacturing Defects
Standard coverageShips within Two days of Confirmed Order
Global delivery09:00 AM - 05:30 PM (Mon-Sat)
Expert assistanceProduct Overview
Official Catalog
Download PDF

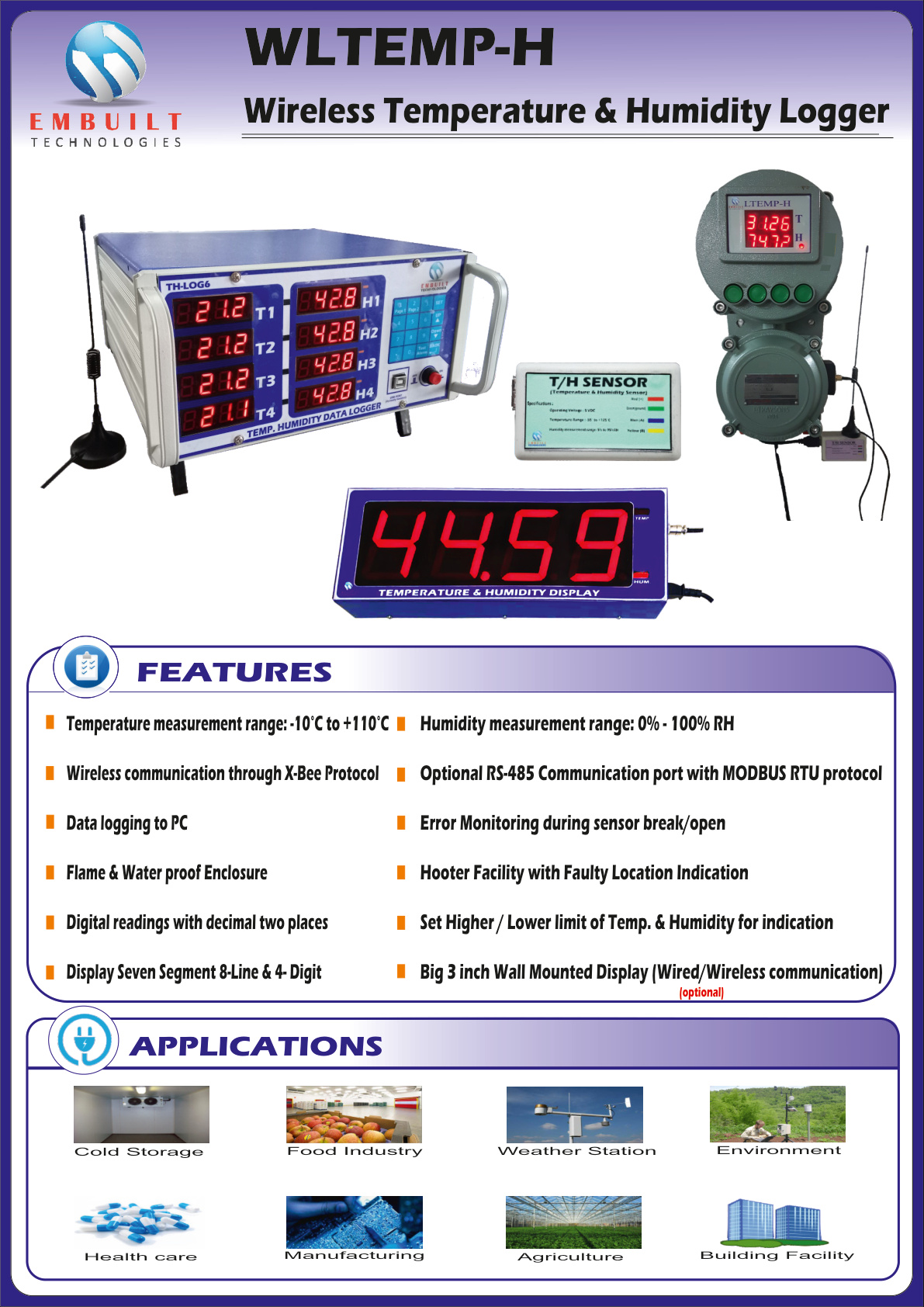

Key Features & Introduction
- Humidity measurement range: 0% - 100% RH
- Optional RS-485 Communication port with MODBUS RTU protocol
- Error Monitoring during sensor break/open
- Hooter Facility with Faulty Location Indication
- Set Higher / Lower limit of Temp. & Humidity for indication
- Big 3 inch Wall Mounted Display (Wired/Wireless communication)
- (optional)
- Temperature measurement range: -10°C to +110°C
- Wireless communication through X-Bee Protocol
- Data logging to PC
- Flame & Water proof Enclosure
- Digital readings with decimal two places
- Display Seven Segment 8-Line & 4- Digit
- Developed & Manufactured By :
- EMBUILT TECHNOLOGIES
- A-404,Vaishali Nagar,
- Jaipur-302021, Rajasthan, INDIA
- Tel. Mob.
- Website : http://www.embuilt.com
- +91-7524853539
- +91-141-2240935
- info@embuilt.com
- Auxiliary Power
- 0% - 100% RH
- 180 - 250 V, 50 Hz

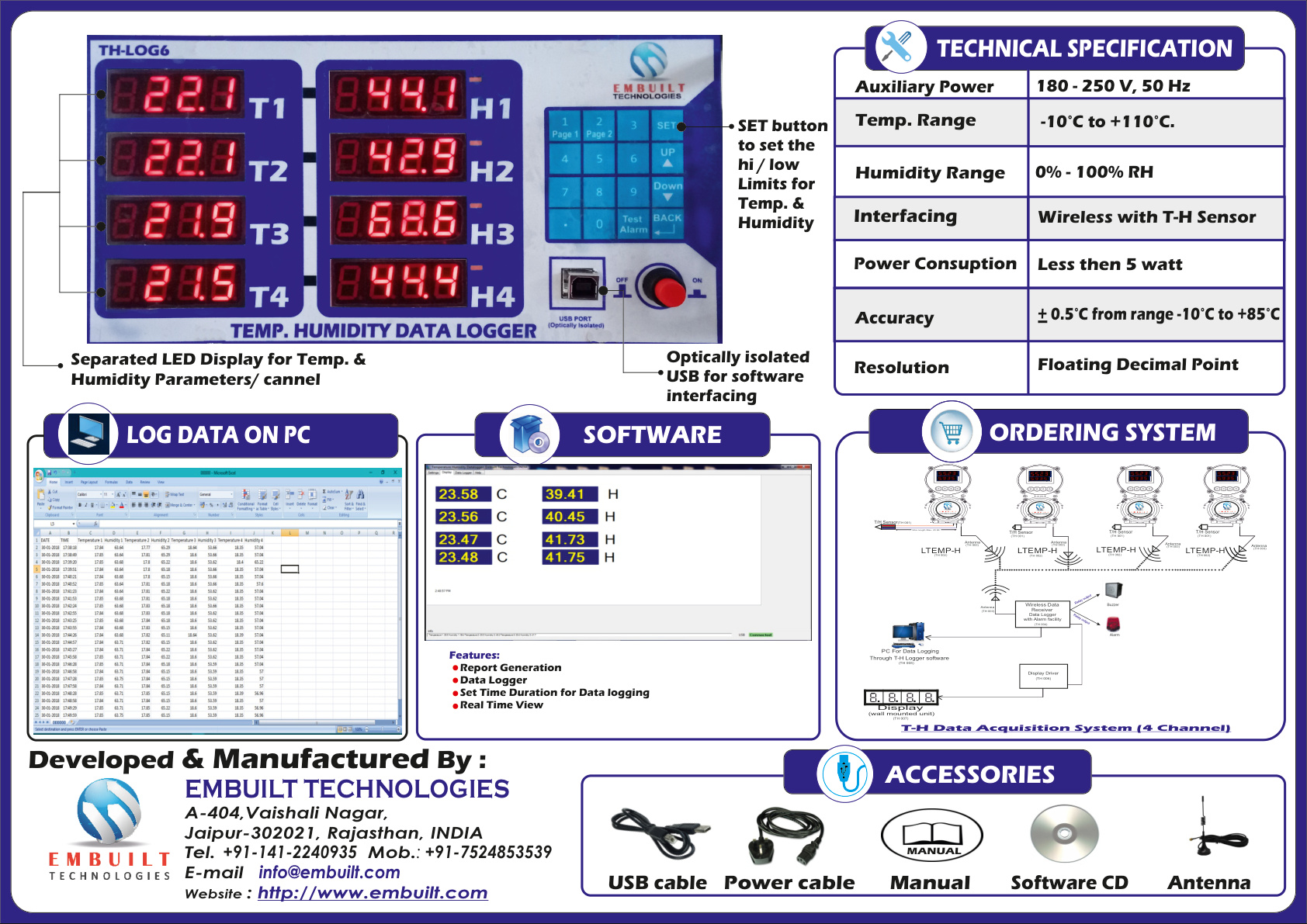

Technical Specifications
Technical Specifications
- Humidity Range
- Resolution
- Floating Decimal Point
- 10°C to +110°C.
- Temp. Range
- Accuracy
- + 0.5°C from range -10°C to +85°C
- Interfacing
- Power Consuption
- Wireless with T-H Sensor
- Less then 5 watt
- ORDERING SYSTEM
- MANUAL
- Power cable
- Manual
- Antenna
- Software CD
- USB cable
