Transformer Testing
Compact-1
IN STOCK
(4.8 Reviews)

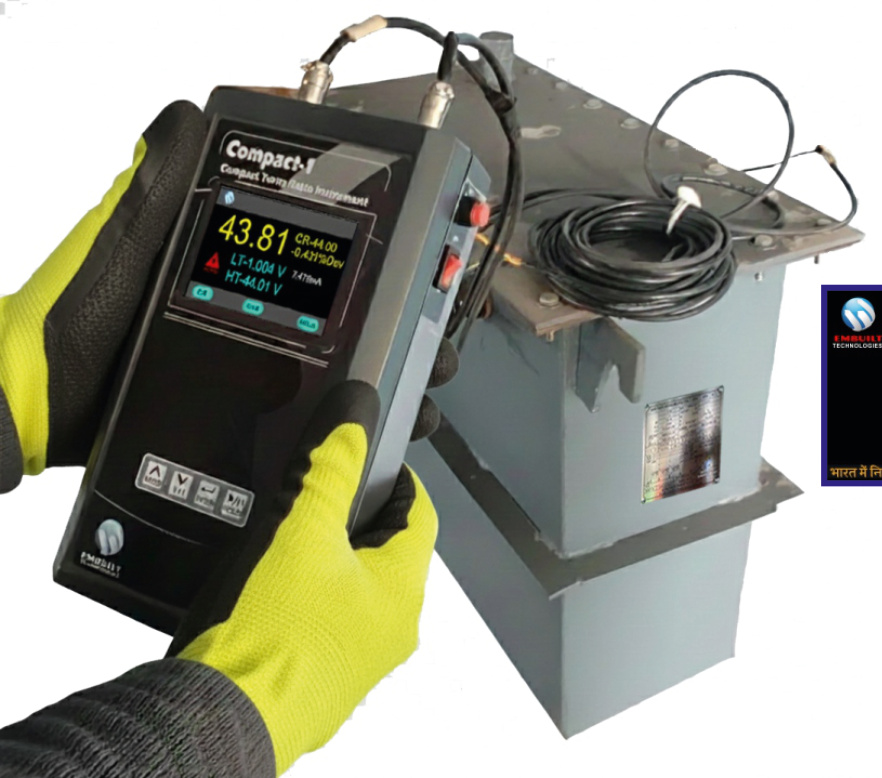

Compact-1 - Single Phase Battery
Operated Turns Ratio Instrument
Portable, Handy Design -
Built for field and on-site testing
Download Brochure
Datasheet & User guide
1 Year Warranty Against Manufacturing Defects
Standard coverageShips within Two days of Confirmed Order
Global delivery09:00 AM - 05:30 PM (Mon-Sat)
Expert assistanceProduct Overview

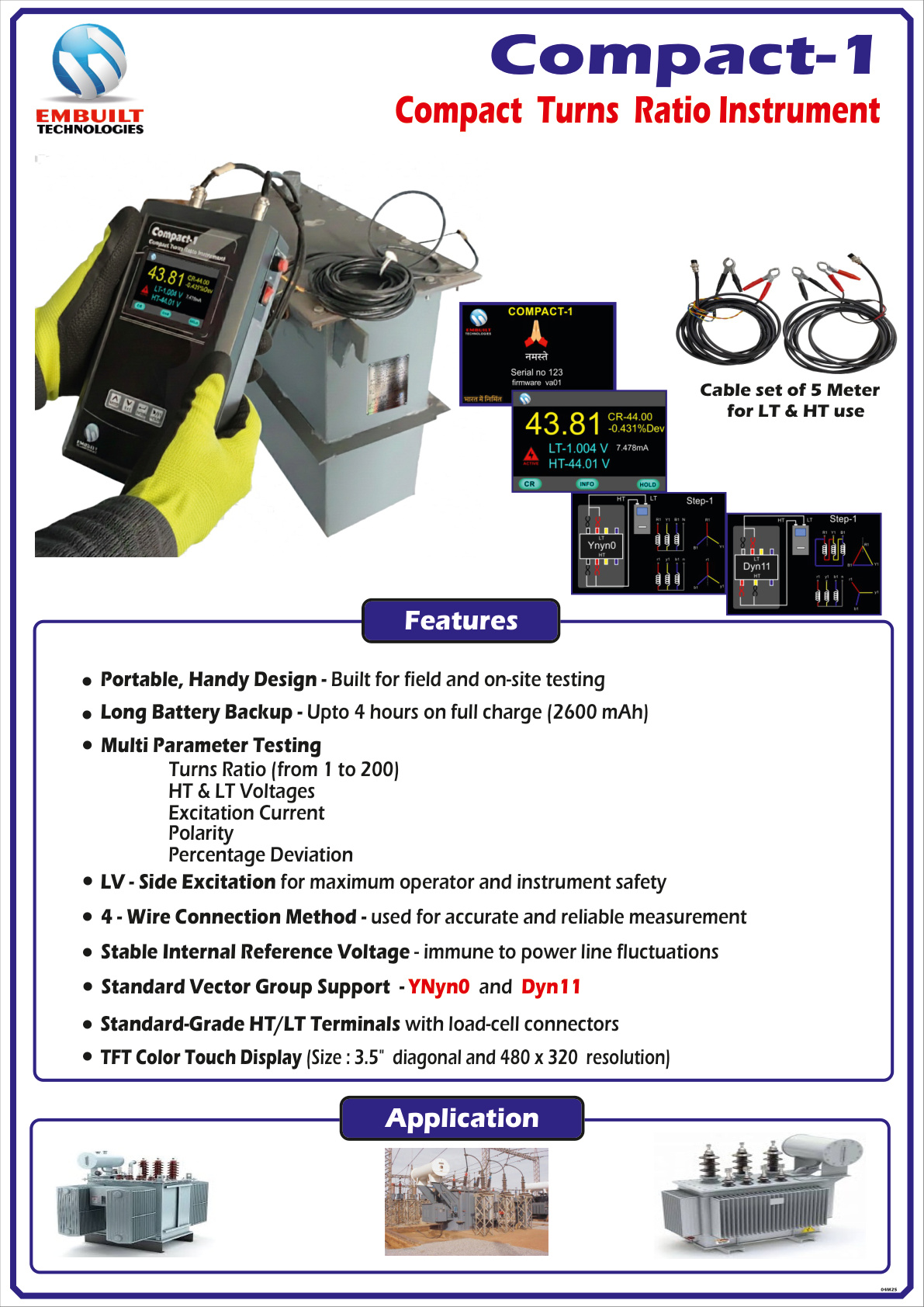

Official Catalog
Download PDF
Key Features & Introduction
- Portable, Handy Design - Built for field and on-site testing
- Long Battery Backup - Upto 4 hours on full charge (2600 mAh)
- Test Voltage ON/OFF Switch
- HT & LT Cable set of 5 Meter
- Charging Adapter
- Safety Features- LV - side excitation, fuse protection
- 3- Phase (Used Method : phase- to- neutral )
- Kunji- All vector group Testing assistance

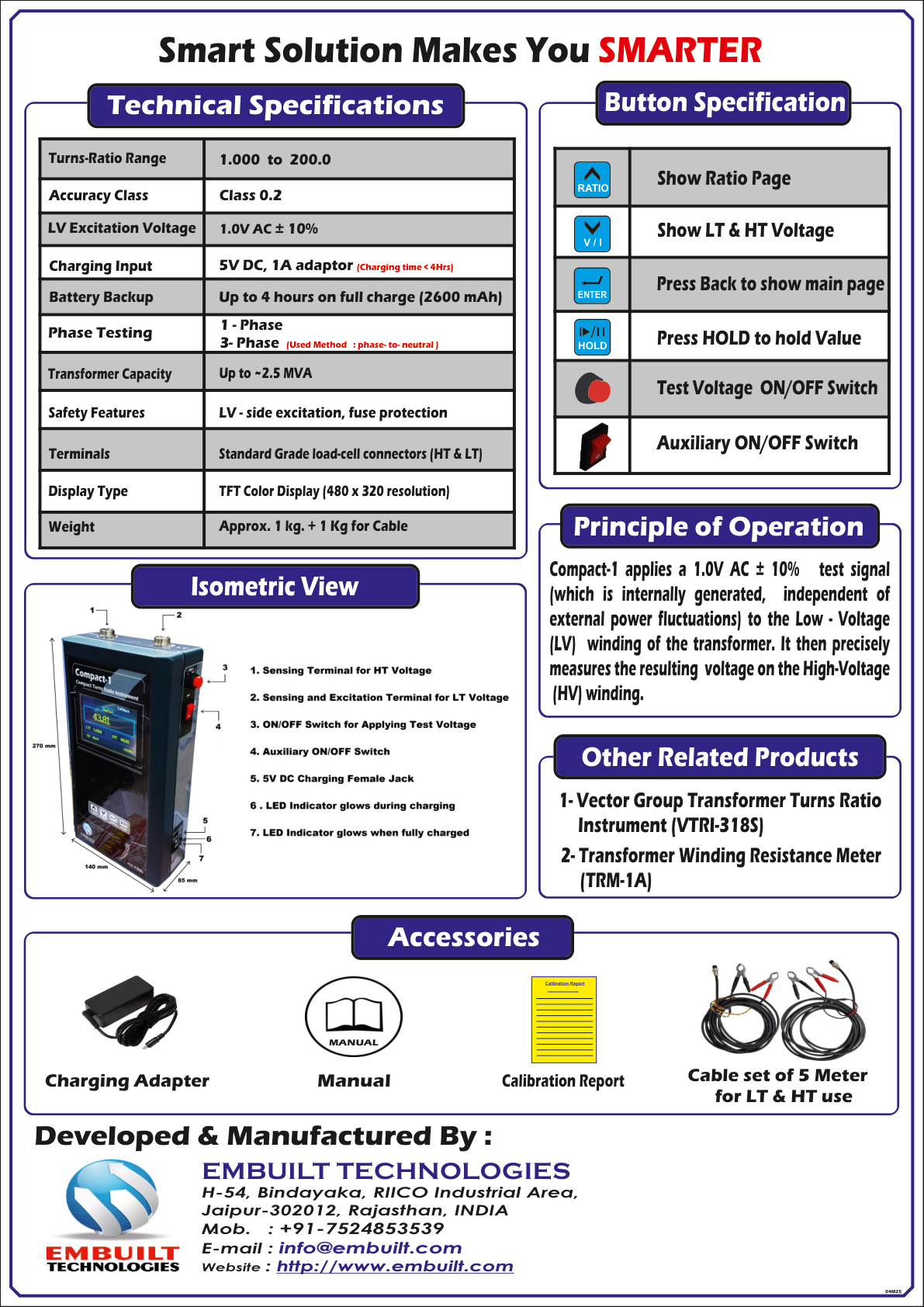

Technical Specifications
Technical Specifications
- Measurement- Ratio, HT & LT Voltages, Polarity, Percentage Deviation, excitation current.
- Charging input- 5V DC, 1A adaptor
- Charging Time- 4 hours ( fully discharge to 90%)
- Terminals- Standard Grade load-cell connectors (HT & LT)
- Display Type- TFT Color Display (480 x 320 resolution)
- Weight- Approx- 1 kg. + 1 Kg for Cable
Transformer Testing- Up to 25 MVA
