PITS-200A
Hot
Injection Test Sets

PITS-200A

IN STOCK
(4.8 Reviews)

PITS-200A - High quality industrial instrument from Embuilt Technologies.

Ask Experts
Download Brochure

Technical datasheet & User guide

1 Year Warranty Against Manufacturing Defects
Standard coverage
Ships within Two days of Confirmed Order
Global delivery
09:00 AM - 05:00 PM (Mon-Sat)
Expert assistance

Product Overview

Official Catalog

Download PDF

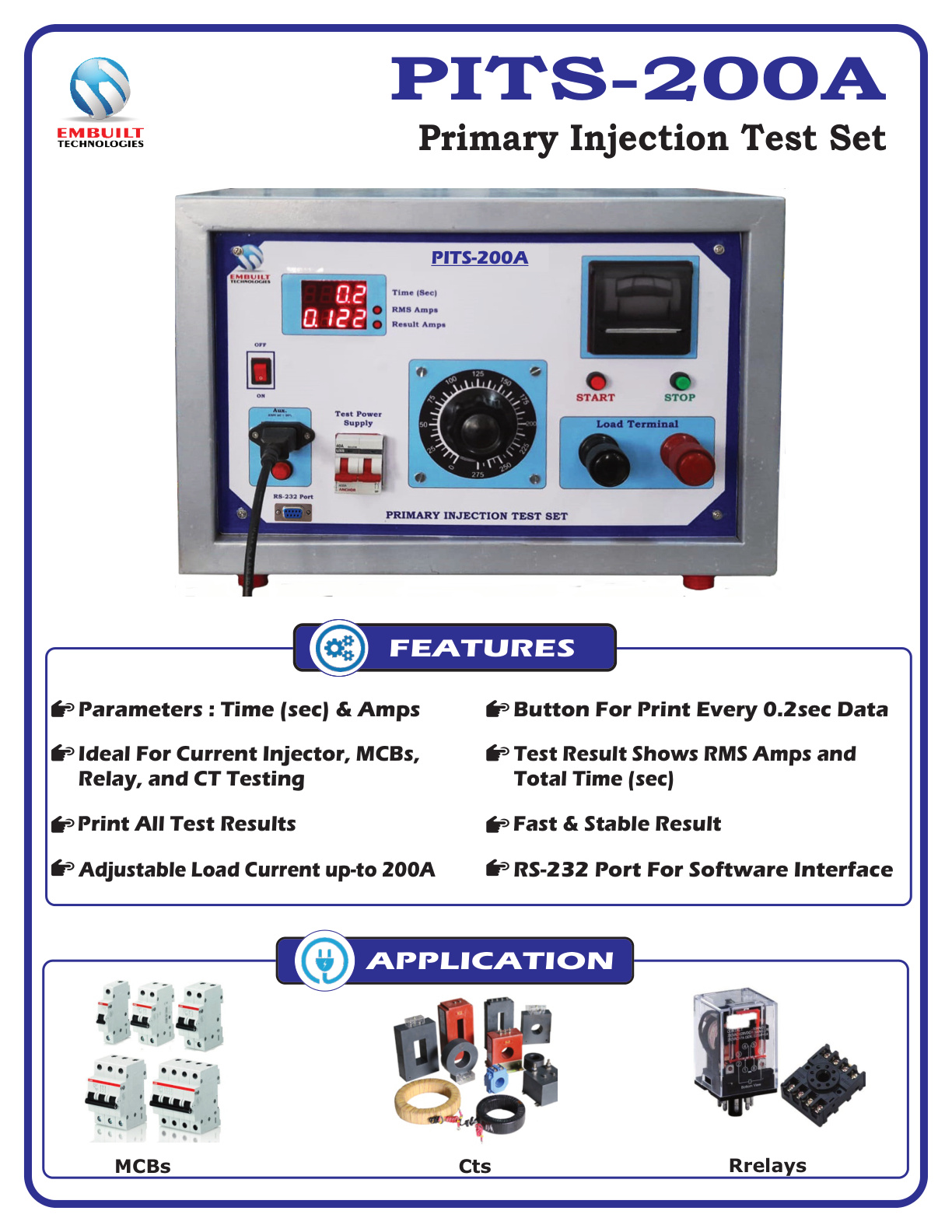

PITS-200A_Catalog.pdf Page 1

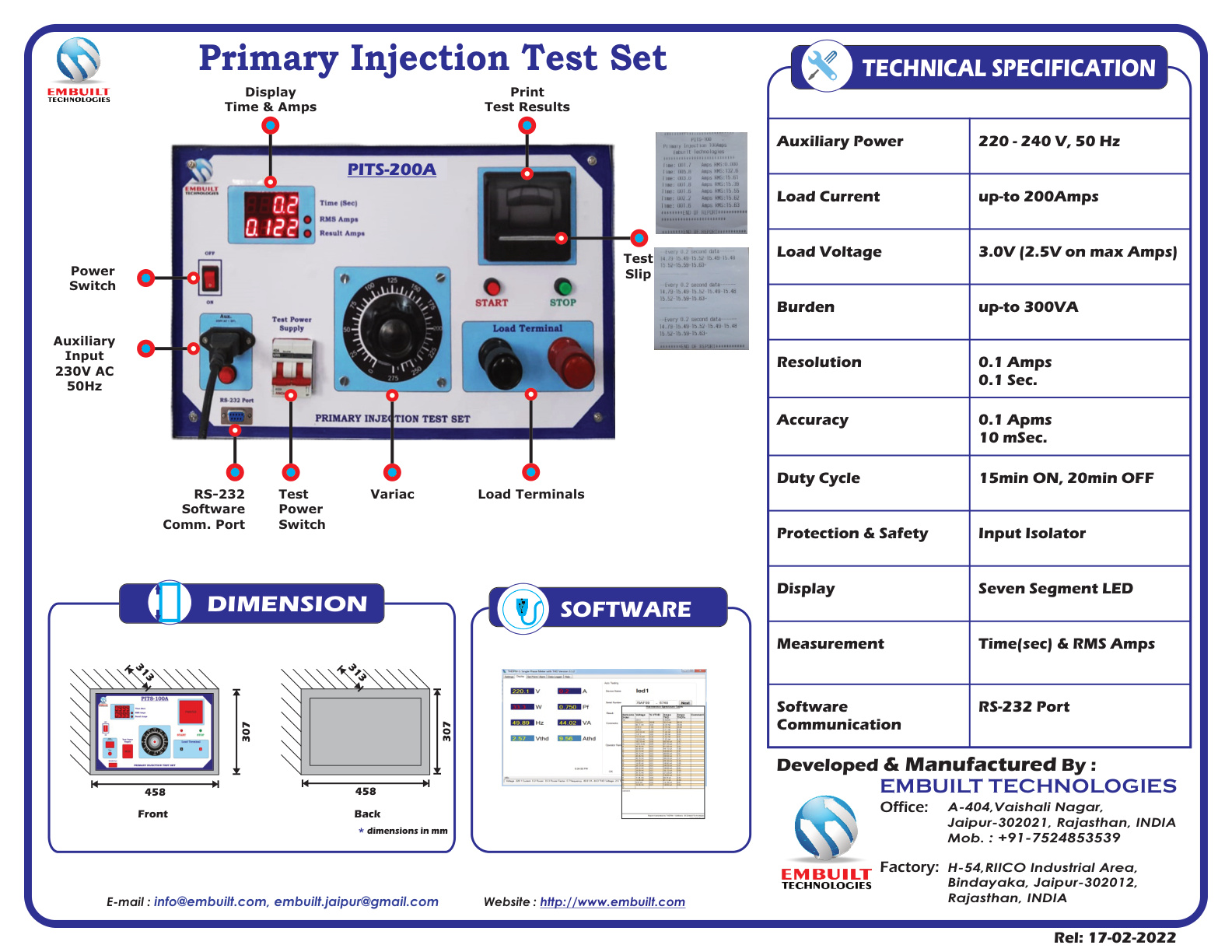

PITS-200A_Catalog.pdf Page 2
Key Features & Introduction
  • Primary Injection Test Set
  • PITS-200A
  • Parameters : Time (sec) & Amps
  • Ideal For Current Injector, MCBs,
  • Relay, and CT Testing
  • RS-232 Port For Software Interface
  • Adjustable Load Current up-to 200A
  • Test Result Shows RMS Amps and
  • Total Time (sec)
  • Print All Test Results
  • Fast & Stable Result
  • Button For Print Every 0.2sec Data
  • APPLICATION
  • MCBs
  • Rrelays
  • PITS-200A
  • Auxiliary Power
  • 220 - 240 V, 50 Hz
  • Load Current
  • up-to 200Amps
  • Load Voltage
  • 3.0V (2.5V on max Amps)
  • Burden
  • up-to 300VA
  • Resolution
  • 0.1 Amps
  • 0.1 Sec.
  • Accuracy
  • 0.1 Apms
  • 10 mSec.
  • Duty Cycle
  • 15min ON, 20min OFF
  • Protection & Safety
  • Input Isolator
  • Display
  • Seven Segment LED
  • Measurement
  • Time(sec) & RMS Amps
  • Software
  • Communication
  • RS-232 Port

Technical Specifications

Technical Specifications

Please refer to the catalog image above for detailed technical specifications.
