LED Driver Testing and Analysis
JT-32 Jig Tester
IN STOCK
(4.8 Reviews)

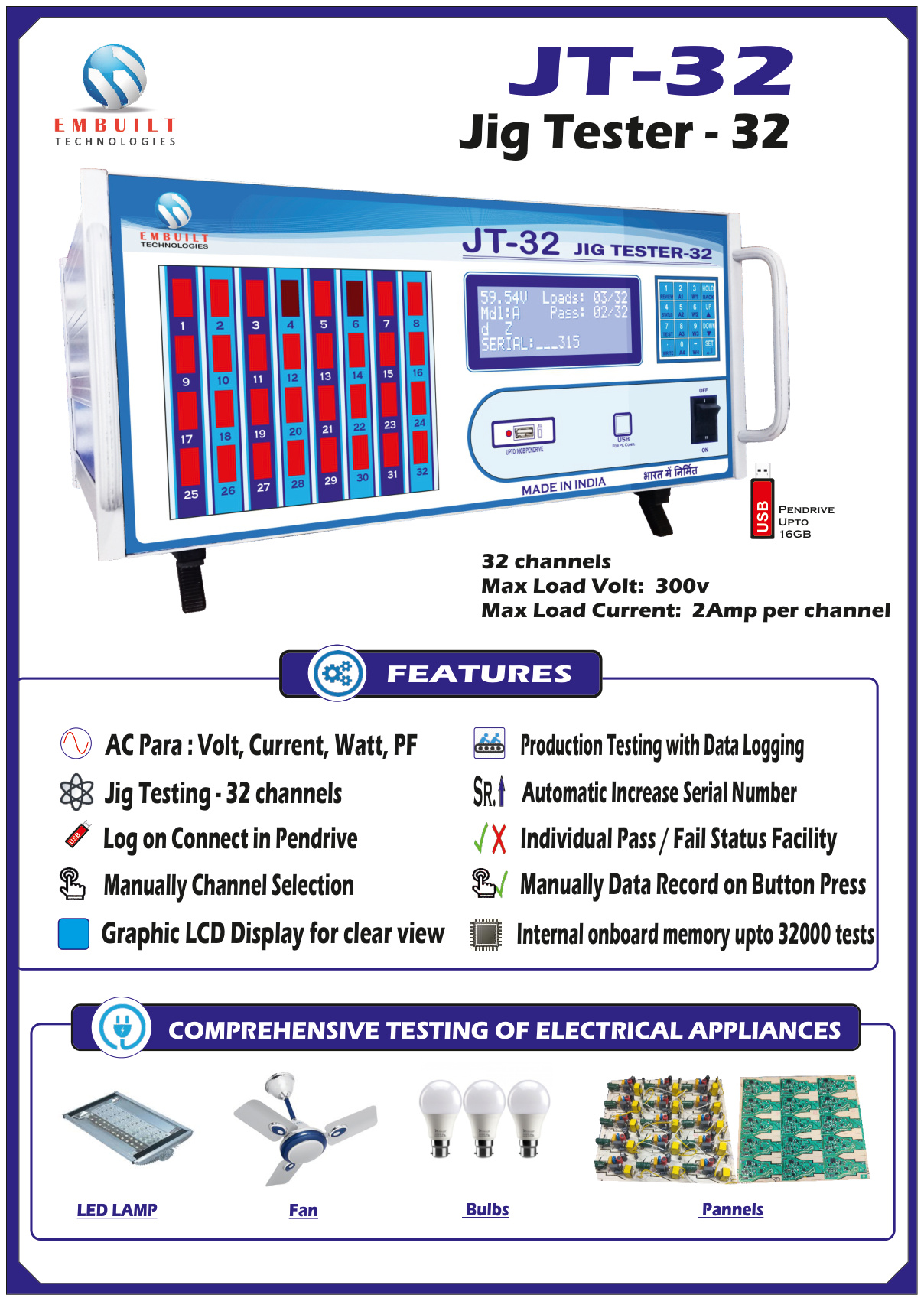

JT-32 A Thirty Two channel Jig Tester
Download Brochure
Datasheet & User guide
1 Year Warranty Against Manufacturing Defects
Standard coverageShips within Two days of Confirmed Order
Global delivery09:00 AM - 05:30 PM (Mon-Sat)
Expert assistanceProduct Overview
Official Catalog
Download PDF
Key Features & Introduction
- Individual Pass / Fail Status Facility
- AC Para : Volt, Current, Watt, PF
- Production Testing with Data Logging
- Log on Connect in Pendrive
- Automatic Increase Serial Number
- Graphic LCD Display for clear view
- Internal onboard memory upto 32000 tests
- Bulbs
- LED LAMP
- COMPREHENSIVE TESTING OF ELECTRICAL APPLIANCES
- Jig Testing - 32 channels
- 32 channels
- Max Load Volt: 300v
- Max Load Current: 2Amp per channel
- Manually Channel Selection
- Manually Data Record on Button Press
- Pannels
- Developed & Manufactured By :
- EMBUILT TECHNOLOGIES
- A-404,Vaishali Nagar,
- Jaipur-302021, Rajasthan, INDIA
- Tel. Mob.
- Website : http://www.embuilt.com
- +91-7524853539
- +91-141-2240935
- info@embuilt.com
- BACK VIEW
- MANUAL
- Power cable
- Manual

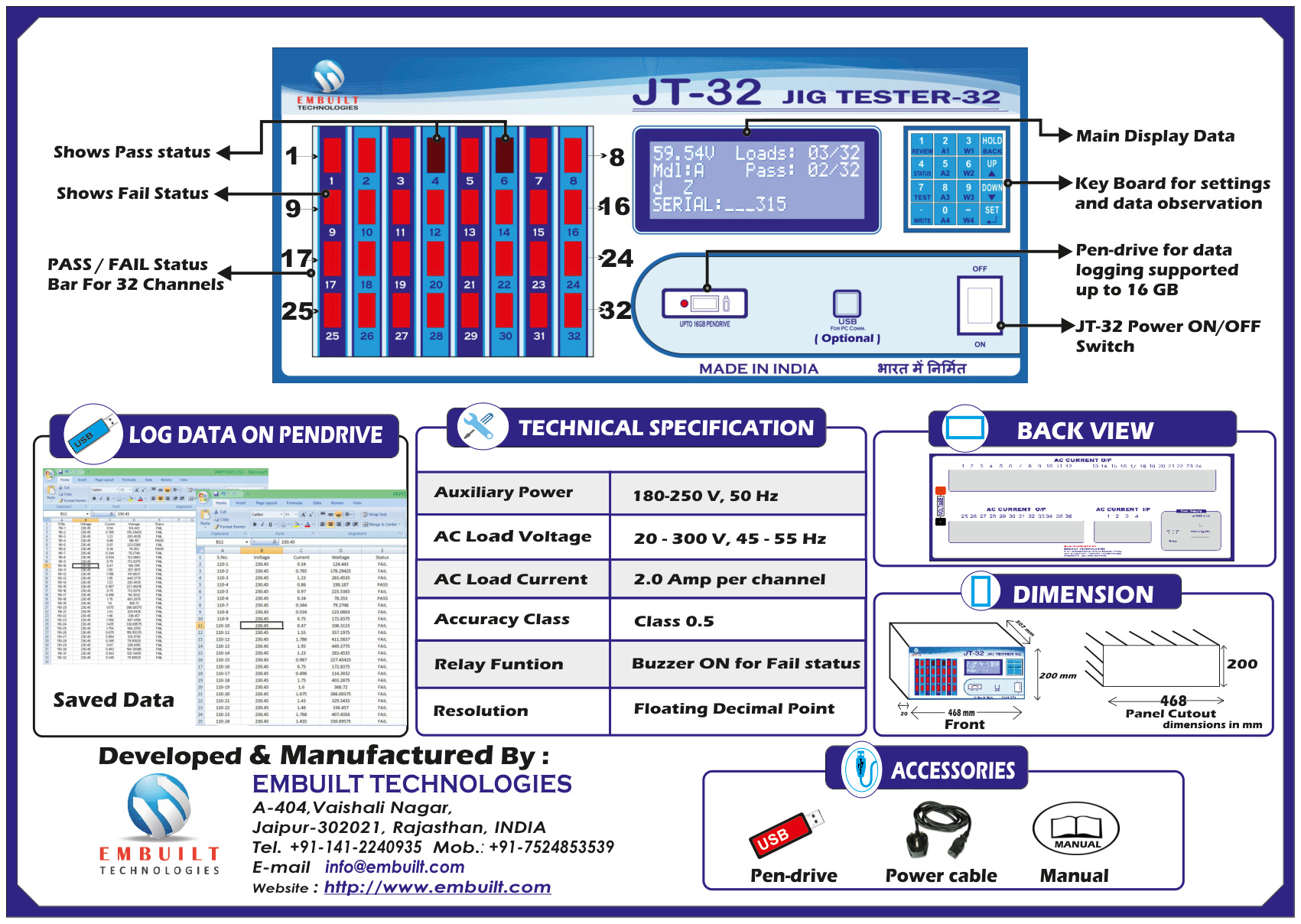

Technical Specifications
Technical Specifications
- Resolution
- Floating Decimal Point
- AC Load Voltage
- Accuracy Class
- 180-250 V, 50 Hz
- 20 - 300 V, 45 - 55 Hz
- 2.0 Amp per channel
- Class 0.5
- AC Load Current
- Auxiliary Power
- Relay Funtion
- Buzzer ON for Fail status
- Saved Data
- Main Display Data
- Key Board for settings
- and data observation
- ( Optional )
- Pen-drive for data
- logging supported
- up to 16 GB
- JT-32 Power ON/OFF
- Switch
- Shows Pass status
- PASS / FAIL Status
- Bar For 32 Channels
- Shows Fail Status
