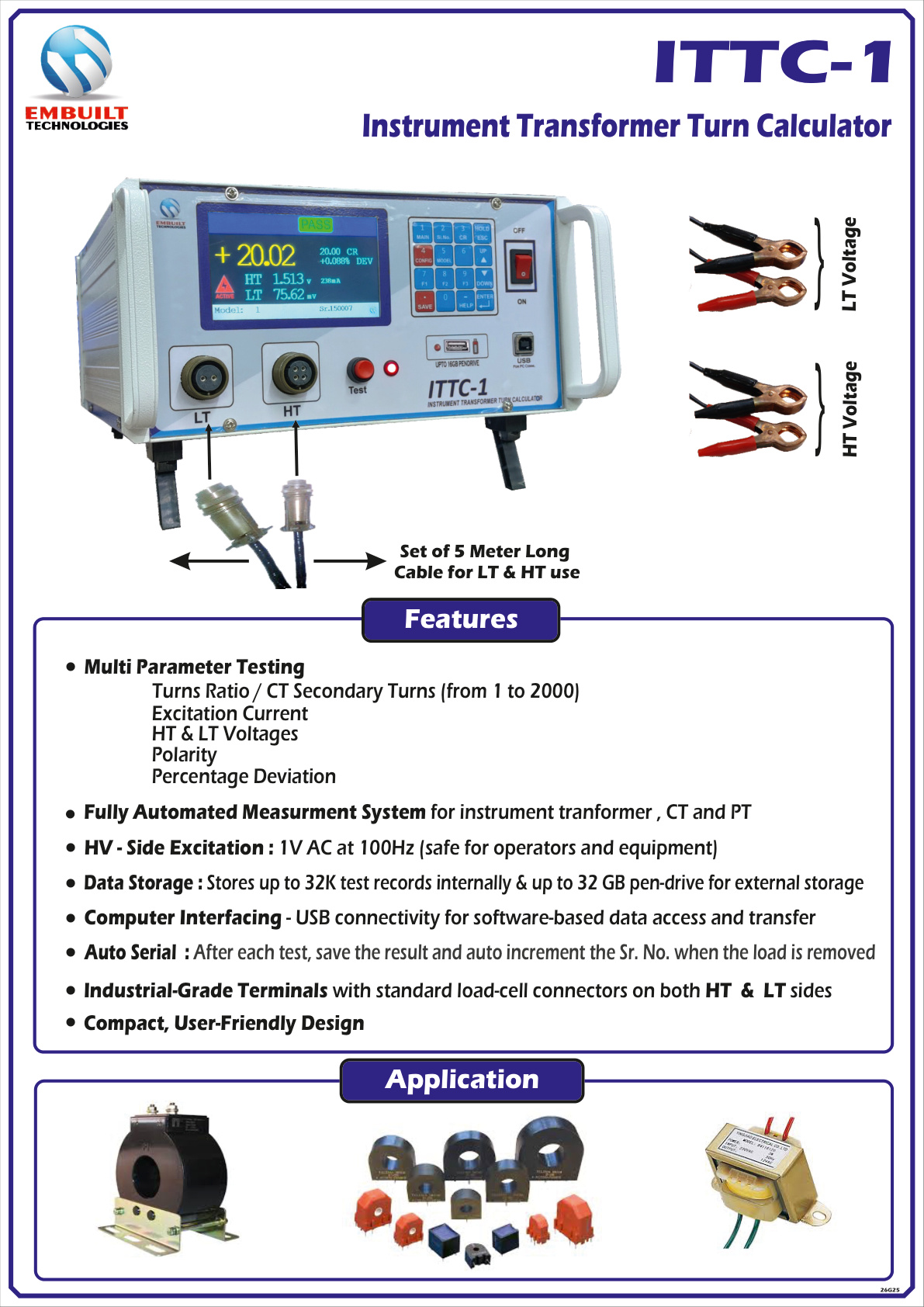

ITTC-1

Key Features & Introduction

• Application
• 26G25
• LT Voltage
• HT Voltage
• Set of 5 Meter Long
• Cable for LT & HT use
• 21F25
• Smart Solution Makes You SMARTER
• 1- 4.3 inch (480x270 pixel ) TFT Display
• 2- 4X4 Keypad
• 3- Aux. ON./OFF Switch
• 4- Sensing Terminal for LT Voltage
• 5- Sensing and Excitation Terminal for HT Voltage
• 6- ON/OFF Switch for applying test voltage
• 7- LED indication for excitation
• 8- Pendrive port for data logging
• 9- USB port for Computer interfacing
• 1. Test Supply Fuse :
• A 1A Fuse is incorporated within a fuse holder
• for protection.
• 2. Aux. Supply - 230 V + 10%
• 1.000 to 2000
• Turns-Ratio Range
• Class 0.1
• 230V AC ± 20%
• One set, 5 meter length
• Test Cable
• 2.2V AC @ 100Hz
• Accuracy Class
• Excitation Voltage
• Auxiliary Supply
