ऊर्जा लाभ (URJA LABH)

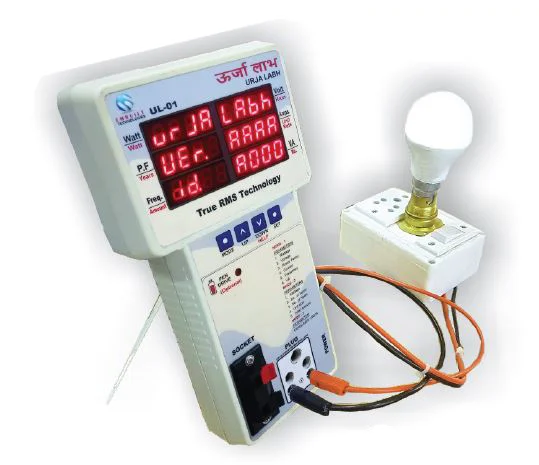

URJA LABH is a useful device to calculate the energy cost of connected AC load. It is cheaper, reliable, lightweight, Fast operating and easy to handle with simple load terminal connection.
Key Features
- Cheaper, reliable, lightweight
- Fast operating
- Easy to handle with simple load terminal connection
- Big red LED display
- Data Logger with Pen-drive (optional)
- Internal onboard memory up to 32000 Tests (optional)
Operating Modes
It has a big red LED display to show different AC parameters on different three modes.
Mode 1: Metering
Meters the load value and shows AC Voltage, Current, Wattage, Power Factor, Frequency and VA rating.
Mode 2: Cost Calculator
Calculates the cost of connected AC load and shows AC load Wattage, No. of hours, No. of years, Unit cost and Total amount.
Mode 3: Unit Calculator
Calculates total consumed units and shows AC load Wattage, Hours, Years and Total Units.
Parameter Adjustment
Note: For changing of any parameters like nos. of hours, years, or unit rate, select the mode and press SET button. After it selects the parameter which you want to change and press up/down button to make changes. Press the Set button to save it.
Screen Descriptions

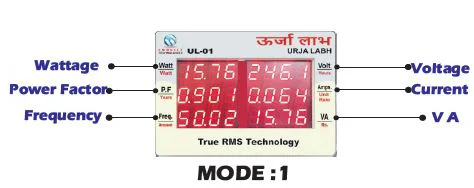

1. Main Screen (Metering)
.webp)

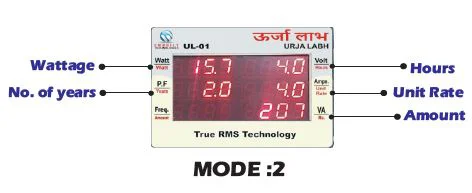

2. Unit Calculator

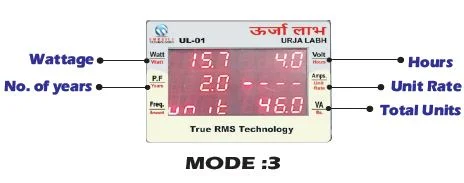

3. Cost Calculator
Additional Features
- Data Logger with Pen-drive (optional)
- Internal onboard memory up to 32000 Tests (optional)
