Solar DC Power Analyser (SDPA-3)

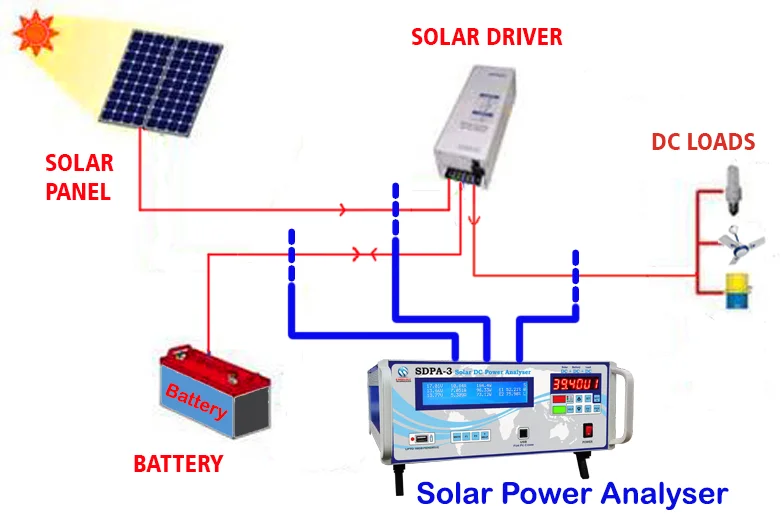

SDPA-3 is a DC(Solar) – DC(Battery) – DC(Load) testing instrument. It is used to measure the parameters of solar power, battery power, and load power consumption.

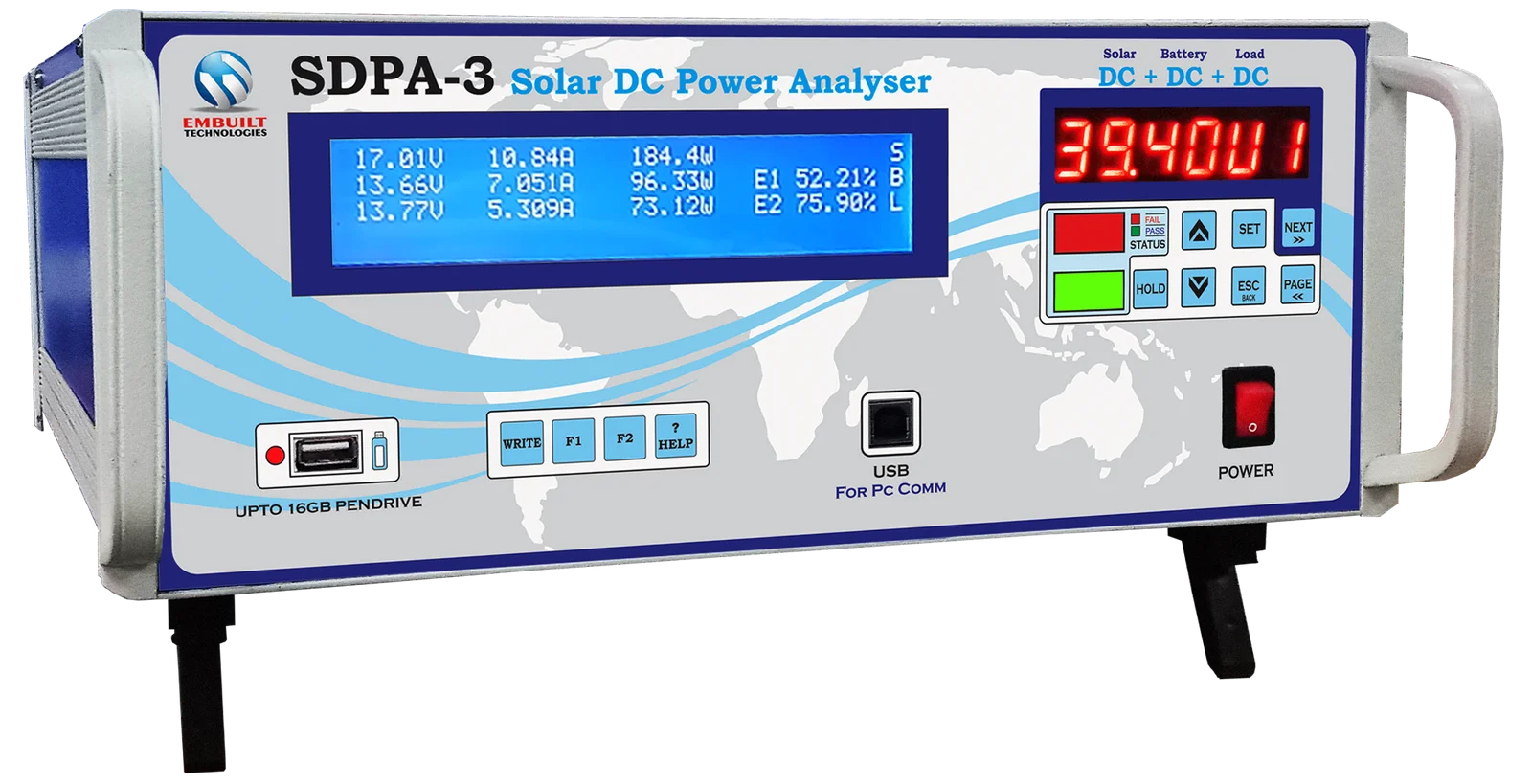

It tests the quality of solar drivers/DC Converters at production. It contains a big display to show solar DC parameters Voltage, Current and Wattage in the first row of the display.
In the second row of the display, it shows Battery DC parameters Voltage, Current, Wattage, and efficiency. And in the third row of the display, it shows DC Load parameters Voltage, Current, Wattage, and efficiency.
SDPA-3 also shows individual pages for Solar measurement, Battery measurement, and Load measurement.
Display Features
1. Solar Power Measurement
Displays solar DC parameters: Voltage, Current, and Wattage
2. Battery Power Measurement
Displays battery DC parameters: Voltage, Current, Wattage, and efficiency
3. Load Power Measurement
Displays load DC parameters: Voltage, Current, Wattage, and efficiency
Safety Features
The USB port and Pen-drive port are also optically isolated with an internal circuit for the safety of the user/operator. It also contains a Bar-Code facility for fast and easy testing. And generate datasheet with barcode number and measured parameters.
Technical Specifications
- Standard current range: 5mA to 10Amp
- Customizable current range as per requirement
- 8 types of testing modes
- Optical isolation for USB and Pen-drive ports
- Barcode facility for fast and easy testing
- Datasheet generation with barcode number and measured parameters
