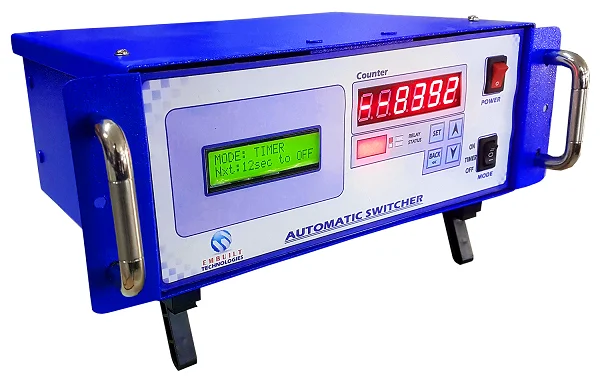

ASC-1 (Automatic Switcher & Counter)
ASC-1 (Automatic Switcher & Counter) is a very useful product for burn-in testing devices. It is mostly used in industries like LED bulb manufacturer, LED driver manufacturer and other similar industries. It automatically switches much time of connected burn-in testing devices and also counts a number of its switching.
Key Features
- Cheaper, reliable, lightweight product
- Easy to handle with Load connection
- Manual mode selection for Counter and Switcher
- Big LED display for relay ON/OFF count
- LED indication for relay status ON/OFF
- User-friendly programmable settings
Technical Specifications
- Maximum range: 500 volt, 40 Amp
- Automatic switching of connected burn-in testing devices
- Counting of switching operations
- Programmable Count Number
- Programmable Switching time
Operation Modes
Switcher Mode
Defined to connect and disconnect the testing load with AC power supply.
Counter Mode
Defined for the number of switching of connected load under testing.
Display Features
- Big LED display for relay ON/OFF count
- LED indication for relay status ON/OFF
Applications
- Burn-in testing for LED bulbs
- Burn-in testing for LED drivers
- Other similar manufacturing industries

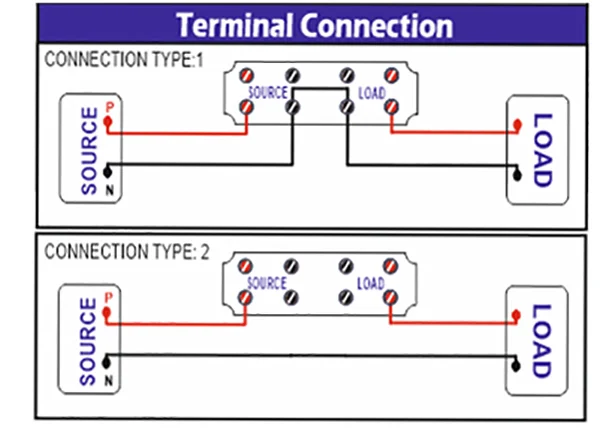

Connection Diagram
There are two ways on terminal connection.
Video Tutorial
This Video contains a complete description of ASC Automatic Switcher & Counter.
