DTM Application Setting

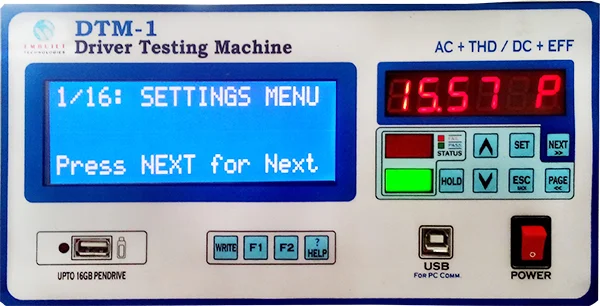

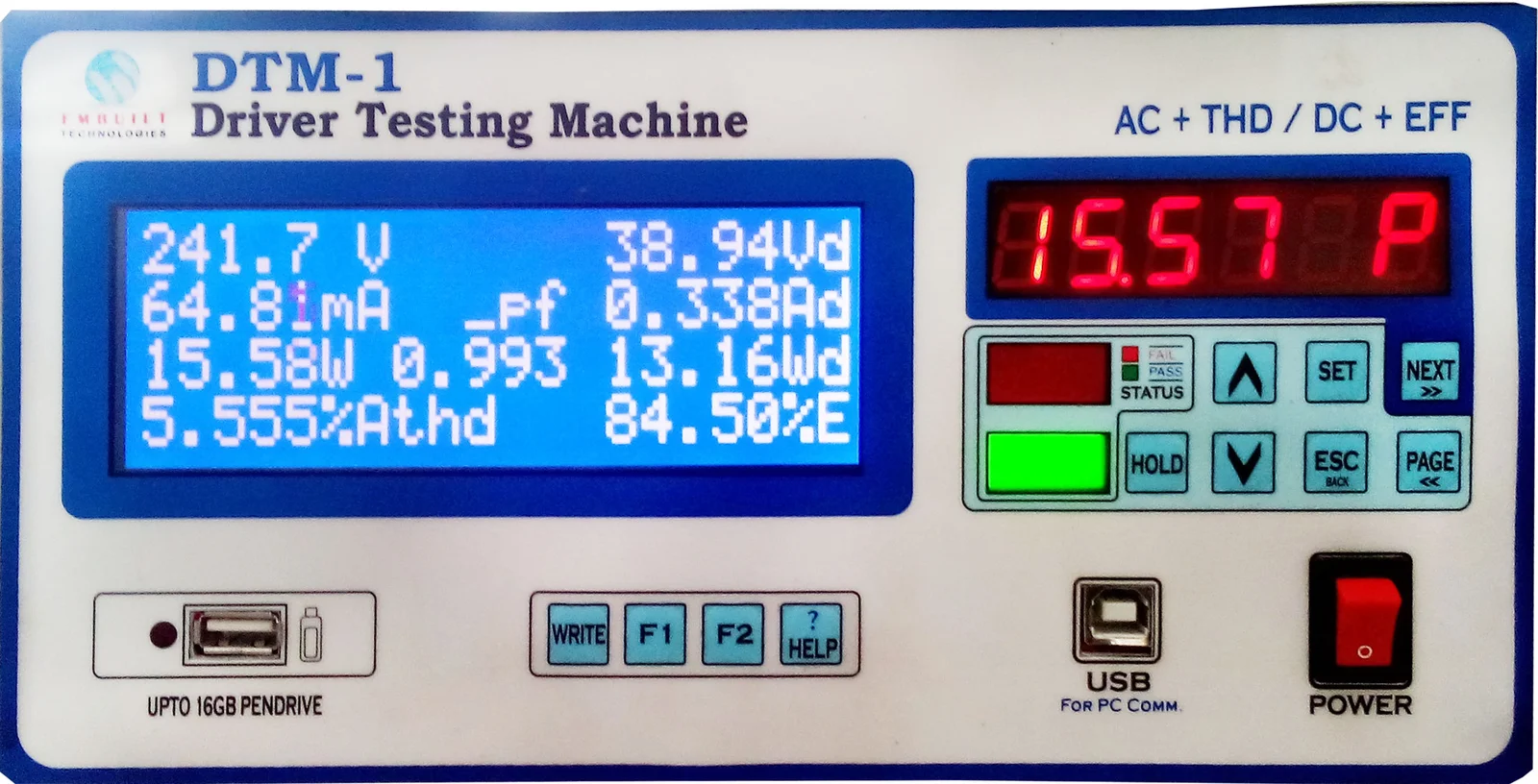

1. Main Screen Display

Press SET button for go to setting page. On main screen, setting page 1/16 display.

2. Navigate to Settings

Press NEXT button and go to the page 4/16.

3. Select Application Mode

Press UP / DOWN to select your work application.

There are three application modes:

1. Production
2. R&D
3. Data Logging

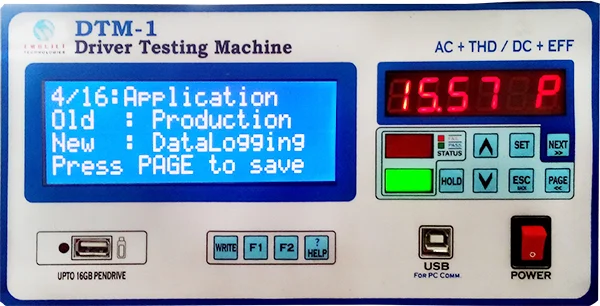

4. Save Settings

Press NEXT or PAGE button to save your setting.

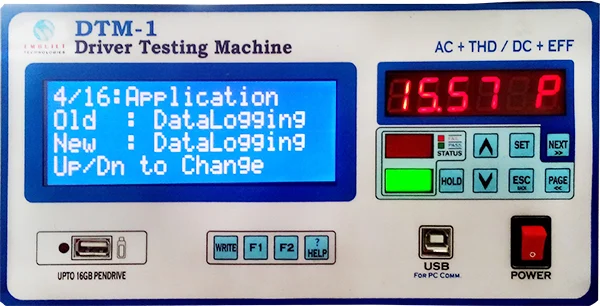

Old: Data Logging, shows your current model

New: Data Logging, will be changed by pressing UP / DOWN buttons

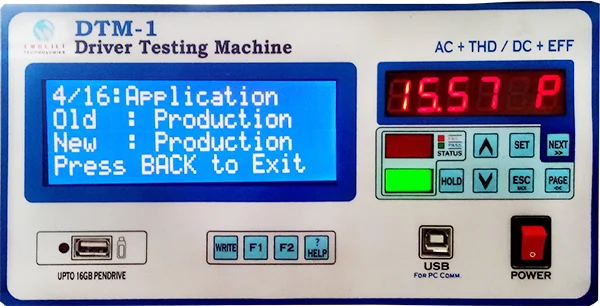

5. Return to Main Screen

Press ESC/BACK to return main screen after setting completed
