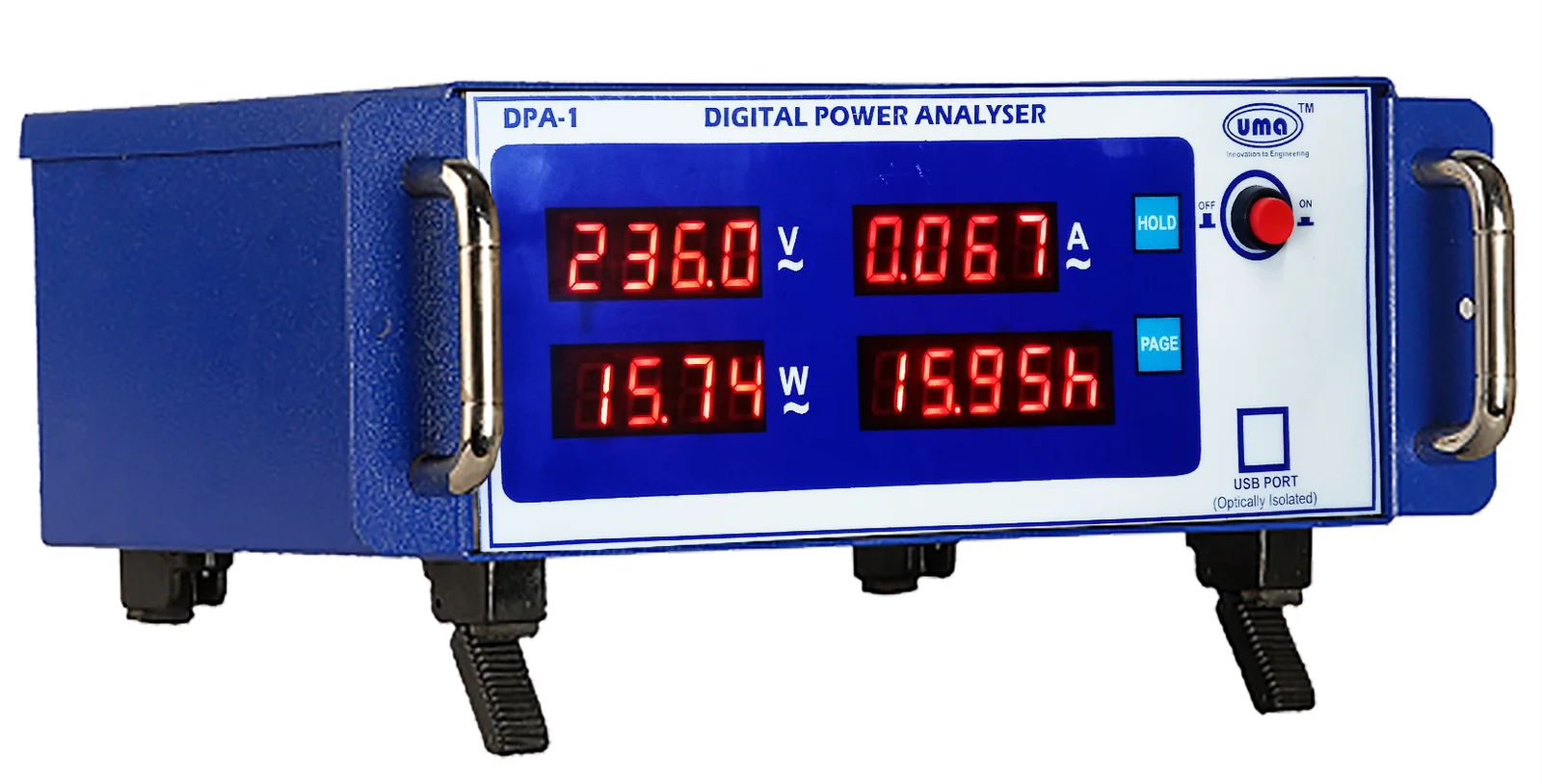

DPA-1 Digital Power Analyzer
The DPA-1 is a precision digital power analyzer designed for accurate measurement and analysis of electrical parameters in single-phase systems. Engineered for reliability and ease of use in both laboratory and production environments.
Key Features
- High accuracy measurements
- Intuitive user interface
- Comprehensive parameter analysis
- Robust construction
- Multiple communication interfaces
Measurement Parameters
| Parameter | Measurement Range | Accuracy |
|---|---|---|
| Voltage (V) | 0-300V | ±0.2% |
| Current (A) | 0-10A | ±0.2% |
| Power (W) | 0-3000W | ±0.5% |
| Power Factor | 0.000-1.000 | ±0.5% |
| Frequency (Hz) | 45-65Hz | ±0.05% |
Technical Specifications
- Display: 7-inch color TFT LCD
- Harmonics Analysis: Up to 40th order
- Memory: Internal storage for 5,000 measurements
- Interfaces: USB, RS485
- Power Supply: 90-264V AC, 50/60Hz
- Operating Temperature: -10-50°C
- Storage Temperature: -25-75°C
Applications
- Electrical equipment testing
- Quality assurance in manufacturing
- Research and development
- Energy efficiency analysis
- Compliance verification
DPA-1 Resources
Related Products
DTM-1
Digital Tester for LED Drivers
.webp)
THDPM-1
Total Harmonics Distortion Power Meter

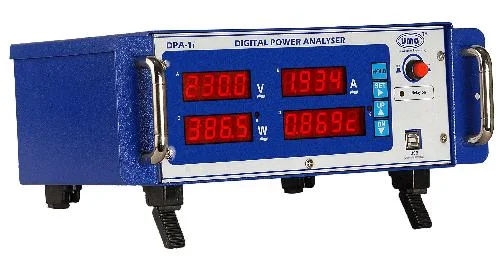

DPA-1i
